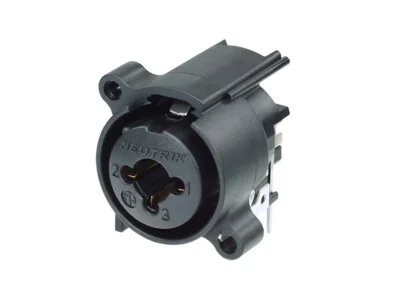

XLR/JACK combo fatning, printben, 3A
Varenr:
H67853
EAN:
5705412678537
NEUTRIK Combo A-seriens hybridstik integrerer et 6,3mm JACK og en XLR-hun i et enkelt kompakt hus. Denne 90° vinklede fatning er designet til elektrisk printmontering og mekanisk panelmontering via en 2-huls flange.>Egenskaber:
- Kombineret Jack 6,3 mm og XLR hun-stik
- Pladsbesparende 90° vinklet design
- Til print- og panelmontering
Tekniske detaljer:
- Producent (varemærke): NEUTRIK
- Serie: Combi A
- Stikdetaljer:
- Type stik: Jack 6,3 mm + XLR fatning
- Køn: Hun
- Rumlig orientering: vinklet 90°
- Montering:
- Mekanisk montering: Flange (2 huller), til panelmontering
- Elektrisk montering: Printhul
- Tekniske parametre:
- Maksimal strøm: 3A
- Driftstemperatur: -20...65°C
The NEUTRIK Combo A series hybrid connector integrates a 6.3mm Jack and an XLR female socket into a single compact housing. This 90° angled socket is designed for THT electrical mounting on PCBs and panel mounting via a 2-hole flange.>Features:
- Combined Jack 6.3mm and XLR female socket
- Space-saving 90° angled design
- Suitable for PCB and panel mounting
Specifications:
- Manufacturer: NEUTRIK
- Series: Combo A
- Connector Details:
- Type of connector: Jack 6.3mm + XLR
- Kind of connector: female
- Spatial orientation: angled 90°
- Mounting:
- Mechanical mounting: Flange (2 holes), for panel mounting
- Electrical mounting: THT
- Technical Parameters:
- Maximum current: 3A
- Operating temperature: -20...65°C
