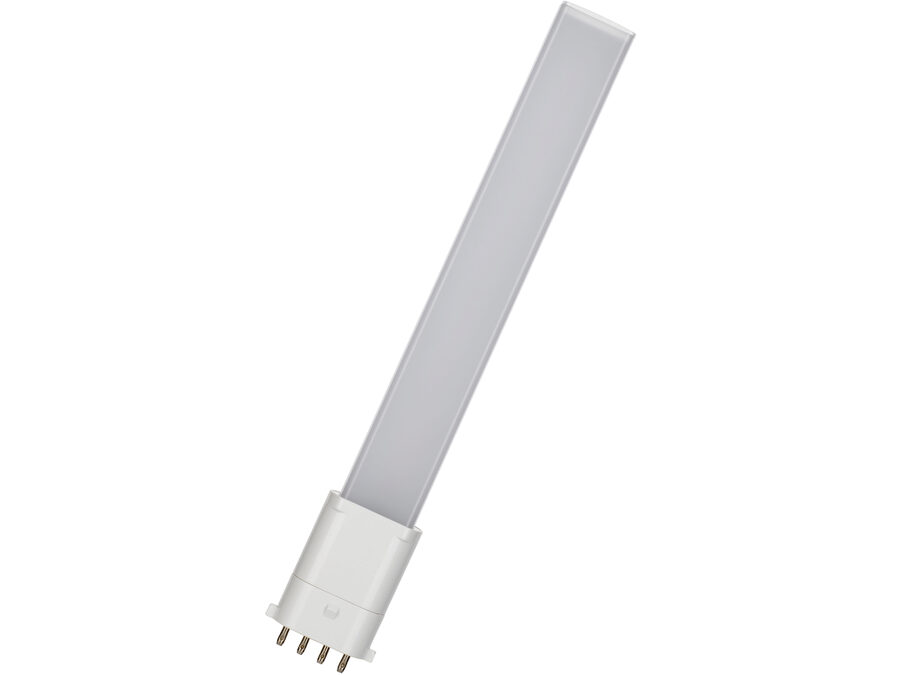

LED PL kompaktrør - 6W (11W) 2G7 4P 840 AC
Varenr:
H64366
EAN:
8714681456422
LED PL 2G7 4-benet TC-SEL 6W (11W) 4000K Frosted 600lm 230V-240V 130° 37x222mm LED-lampe Alt PLS Dulux S/E-
LED PL 2G7 (4-bens) TC-SEL lamperne er erstatninger for de almindeligt anvendte kompaktlysstofrør uden integreret forkobling. PL står for PubLic, da disse lamper hovedsageligt bruges i offentlige områder, korridorer, kontorer, catering og som orienteringsbelysning. Installation: Afbryd ballasten før brug. Læs altid manualen omhyggeligt før installation. Omgivelsestemperaturområde: -20°C til +25°C.
Tekniske detaljer:
- Mærke: Bailey
- Produktserie: LED PL
- Sokkel: 2G7 4P
- Nominel spænding: 220 - 240 Vac
- Lampeeffekt: 6 W
- Lysstyrke: 600 lm
- Lampeeffekt: 100 lm/W
- Farvegengivelsesindeks (CRI): 80-89
- Lampeform: Rør, enkelt-ende
- Type glas/dæksel: Frosted
- Lysets farve: Neutral hvid (840)
- Farvetemperatur: 4000 K
- Farve hus: Hvid
- Strålevinkel: 130°
- Dæmpbar: Nej
- diameter: Ø37mm
- Længde: 222mm
- IP-rating: IP20
- Energiklasse: F
- Min. antal skiftecyklusser: 15000
- Vægtet energiforbrug på 1000 timer: 6 kWh
- Gennemsnitlig nominel levetid: 20.000 timer
LED PL 2G7 4-pins TC-SEL 6W (11W) 4000K Frosted 600lm 230V-240V 130° 37x222mm LED-lamp Alt PLS Dulux S/E-
The LED PL 2G7 (4-pin) TC-SEL lamps are replacements for the commonly used compact fluorescent lamps without integrated ballast. PL stands for PubLic as these lamps are mainly used in public areas, corridors, offices, catering and as orientation lighting. Installation: Disconnect the ballast before use. Always read the manual carefully before installation. Ambient temperature range: -20°C to +25°C.
Specifications:
- Brand: Bailey
- Productseries: LED PL
- Socket: 2G7 4P
- Nominal voltage: 220 - 240 Vac
- Lamp power: 6 W
- Luminous flux: 600 lm
- Lamp efficacy: 100 lm/W
- Colour rendering index CRI: 80-89
- Lamp shape: Tube, single-ended
- Type of glass/cover: Frosted
- Colour of light: Neutral white (840)
- Colour temperature: 4000 K
- Colour housing: White
- Beam angle: 130°
- Dimmable: No
- Diameter: 37 mm
- Length: 222 mm
- Degree of protection (IP): IP20
- Energy efficiency class: F
- Min. number of switching cycles: 15000
- Weighted energy consumption in 1000 hours: 6 kWh
- Average nominal lifespan: 20000 h
Specifikationer
| Energiklasse | F |
