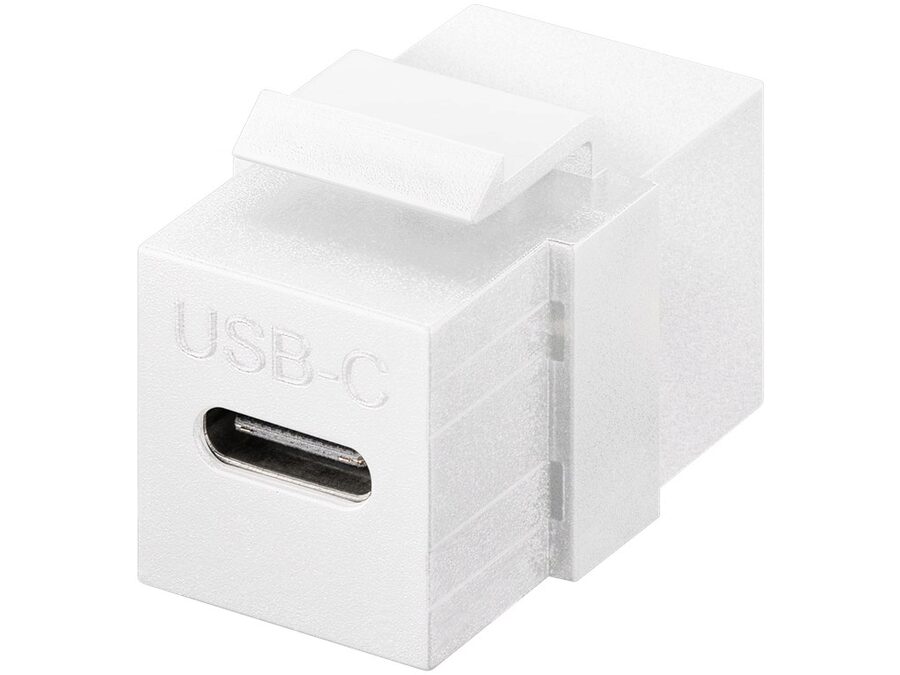

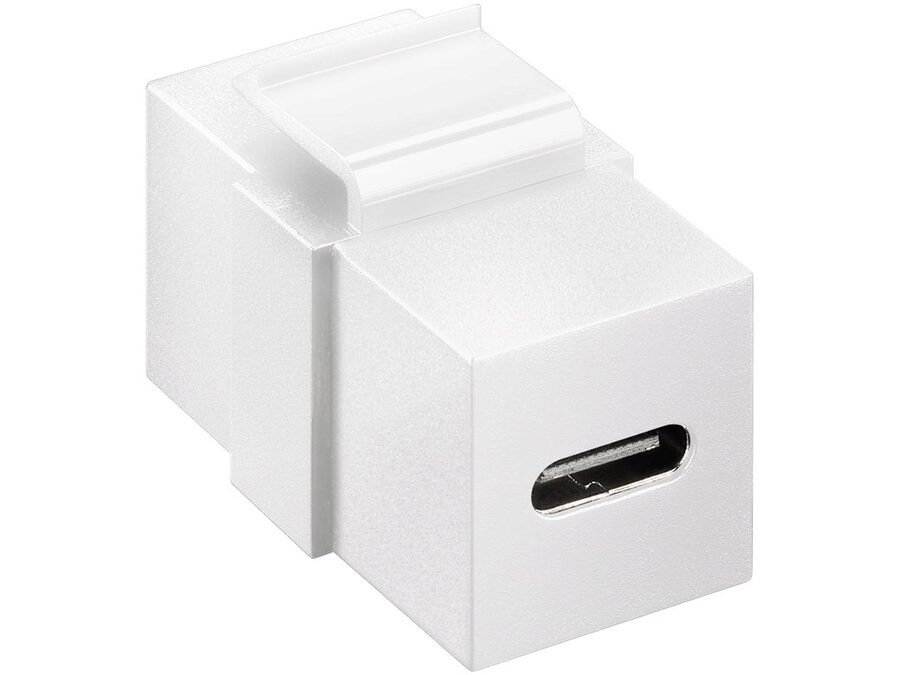

Keystone Module USB-C™ Connector, USB 3.2 Gen 2 (10 Gbit/s)
Varenr:
H64343
EAN:
4040849612626
USB-C-stik > USB-C-stik
Egenskaber:
- USB type C-stik understøtter særlig hurtig data- og videotransmission med op til 10 Gbit/s
- UHD-kompatibel med opløsninger på op til 4K ved 60 Hz (3840 x 2160 pixels)
- Ekstremt alsidig, f.eks. til at tilslutte 2x USB-C-kabler og forlænge din forbindelse eller som Keystone-stik i et fordelingspanel, vægstik eller skrivebordsindsats
- Praktisk løsning til kontoret, hotellet eller endda mødelokalet med struktureret kabling til at forbinde projektorer, notebooks og smartphones
- Keystone jack-adapteren med en hun-til-hun-forbindelse er fastgjort til patchpanelet eller chassiset ved snap-in-montering.
- Velegnet til USB-strømforsyning op til maks. 5 A/100 W og en mærkespænding på 5-20 V ved 5 A mærkestrøm i standarddrift
- USB-C-kobling med SuperSpeed USB 10 Gbps, bagudkompatibel med Hi-Speed USB og USB 3.2 Gen 1 SuperSpeed USB 5 Gbps
Tekniske detaljer:
- Stikforbindelser:
- Tilslutning 1, type: USB-C-stik
- Konstruktionsform: Keystone-gitter (14,9 x 17,0 mm)
- Præstation:
- Maks. ydeevne: 100,0 W
- Stikforbindelser:
- Udgang, maks. strømstyrke: 5 A
- Udgang, spænding (DC): 20 Vdc , 20,0 Vdc
- Udgang, maks. strømstyrke: 5,0 A
- Signaloverførsel:
- Maks. transmissionshastighed: 10 Gbit/s
- Generel:
- Farve: Hvid
- Materiale: ABS
- Operationel temperatur: 0...45°C
- Størrelse/vægt:
- Længde: 28,8mm
- Bredde: 17,2mm
- Højde: 16,1mm
- Tilbehør - Strømforsyning:
- Udgangsstrøm: 5 A
- Udgangsspænding: 15,0 V
USB-C-socket > USB-C-socket
Features:
- USB type C connector supports particularly fast data and video transmission at up to 10 Gbit/s
- UHD-capable with resolutions of up to 4K @ 60 Hz (3840 x 2160 pixels)
- Extremely versatile, e.g. to connect 2x USB-C cables and extend your connection or as a Keystone jack in a distribution panel, wall socket or desk insert
- Practical solution for the office, hotel or even conference room with structured cabling to connect projectors, notebooks and smartphones
- The Keystone jack adapter with a female to female connection is attached to the patch panel or chassis by snap-in mounting.
- Suitable for USB Power Delivery up to max. 5 A/100 W and a rated voltage of 5-20 V at 5 A rated current in standard operation
- USB-C coupler with SuperSpeed USB 10Gbps, backwards compatible with Hi-Speed USB and USB 3.2 Gen 1 SuperSpeed USB 5Gbps
Specifications:
- Connections:
- Connection, type: USB-C-socket
- Construction form: Keystone grid (14,9 x 17,0 mm)
- Performance:
- Max. performance: 100.0 W
- Device connections:
- Output, max. amperage: 5 A
- Output, voltage (DC): 20 V (DC)
- Output, voltage (DC): 20.0 V (DC)
- Output, max. amperage: 5.0 A
- Signal transmission:
- Max. transmission rate: 10 Gbit/s
- General:
- Color: White
- Material: ABS
- Operating temperature: 0...45°C
- Dimensions / Weight:
- Length: 28.8 mm
- Width: 17.2 mm
- Height: 16.1 mm
- Accessory - Power supply:
- Output current: 5 A
- Output voltage: 15.0 V
