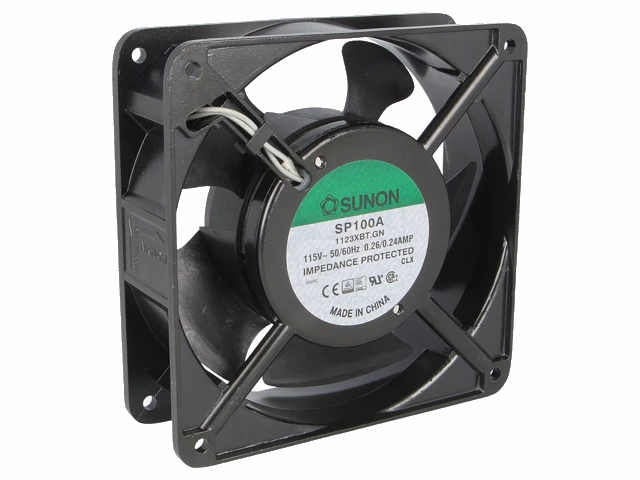

AC Blæser - 120x120x38mm 115VAC 20W, Kugleleje
Varenr:
H64033
EAN:
5705412640336
Tekniske detaljer:
- Producent (varemærke): SUNON
- Ventilatortype: AC
- Type blæser: Aksial
- Ventilatormål: 120x120x38mm
- Strømforbrug: 20W
- Mærkestrøm: 0,24A
- Ventilatoreffektivitet: 199m
- Støjniveau: 50dBA
- Type leje: Kugleleje
- Rotationshastighed: 3150 rpm
- Strøm- og strømforbrugstolerance: ±15 %
- Frekvens: 60Hz
- Min. isolationsmodstand: 500 MOhm
- Løbehjulsmateriale: Termoplastisk
- Kapslingsmateriale: Aluminium
- Ledninger: Stik 2,8x0,3mm
- Operationel temperatur: -10...70°C
- Brandklasse: UL94V-0
- Statisk tryk: 9,9mm H
- Forsyningsspænding:
- 115Vac
- Bruttovægt: 523,6g
Specifications:
- Manufacturer: SUNON
- Type of fan: AC
- Kind of fan: Axial
- Fan dimensions: 120x120x38mm
- Power consumption: 20W
- Current rating: 0.24A
- Fan efficiency: 199m
- Noise level: 50dBA
- Kind of Bearing: Ball bearing
- Rotational rate/speed: 3150rpm
- Current and power consumption tolerance: ±15%
- Frequency: 60Hz
- Min. insulation resistance: 500 MOhm
- Impeller material: Thermoplastic
- Enclosure material: Aluminium
- Leads: Connectors 2,8x0,3mm
- Operating temperature: -10...70°C
- Flammability rating: UL94V-0
- Static pressure: 9.9mm H
- Supply voltage:
- 115V AC
- Gross weight: 523.6 g
