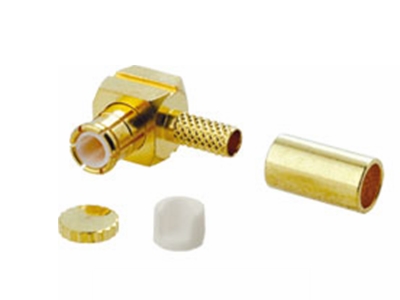

MCX hanstik, vinklet - 50ohm, til RG174 kabel, krimptype
Varenr:
H63210
EAN:
5705412632102
MCX (Micro Coaxial stik) er koaksiale RF-stik med samme indre kontakt- og isolatordimensioner som SMB-stikket, men 30% mindre. MCX-stik har en snap-on-grænseflade, og kontaktflader er forgyldte. Den udvendige diameter af kontakstykket er ca. 3,6 mm.
Dette stik bruges ofte i GPS-antenneløsninger. Krimprør og kontaktben medfølger.
Tekniske detaljer:
- Producent (varemærke): NINIGI
- Stikvariant: Fatning
- Type stik: MCX
- Køn: Han
- Orientering: Vinklet 90°
- Bølgeimpedans: 50 Ohm
- Type kabel: RG174, RG188, RG316
- Elektrisk montage: Krimp, lodning
- Mekanisk montage: Til kabel
- Kontaktbelægning: Forgyldt
- Maks. kontaktmodstand: 5 mOhm
- Nominel spænding: 170V
- Bruttovægt: 1,06g
MCX (micro coaxial connector) are coaxial RF connectors with same inner contact and insulator dimensions as the SMB connector but 30% smaller. MCX connectors use a snap-on interface and contact surfaces are gold-plated. The outer diameter of the plug is approx 3,6mm.
This connector is often used in GPS antenna solutions. Crimp tube and solder contact pin are included.
Specifications:
- Manufacturer: NINIGI
- Connector: Plug
- Type of connector: MCX
- Kind of connector: Male
- Spatial orientation: Angled 90°
- Wave impedance: 50O
- Kind of cable: RG174, RG188, RG316
- Electrical mounting: Crimped, soldering
- Mechanical mounting: For cable
- Contact plating: Gold-plated
- Max. contact resistance: 5 mOhm
- Rated voltage: 170V
- Gross weight: 1.06 g
