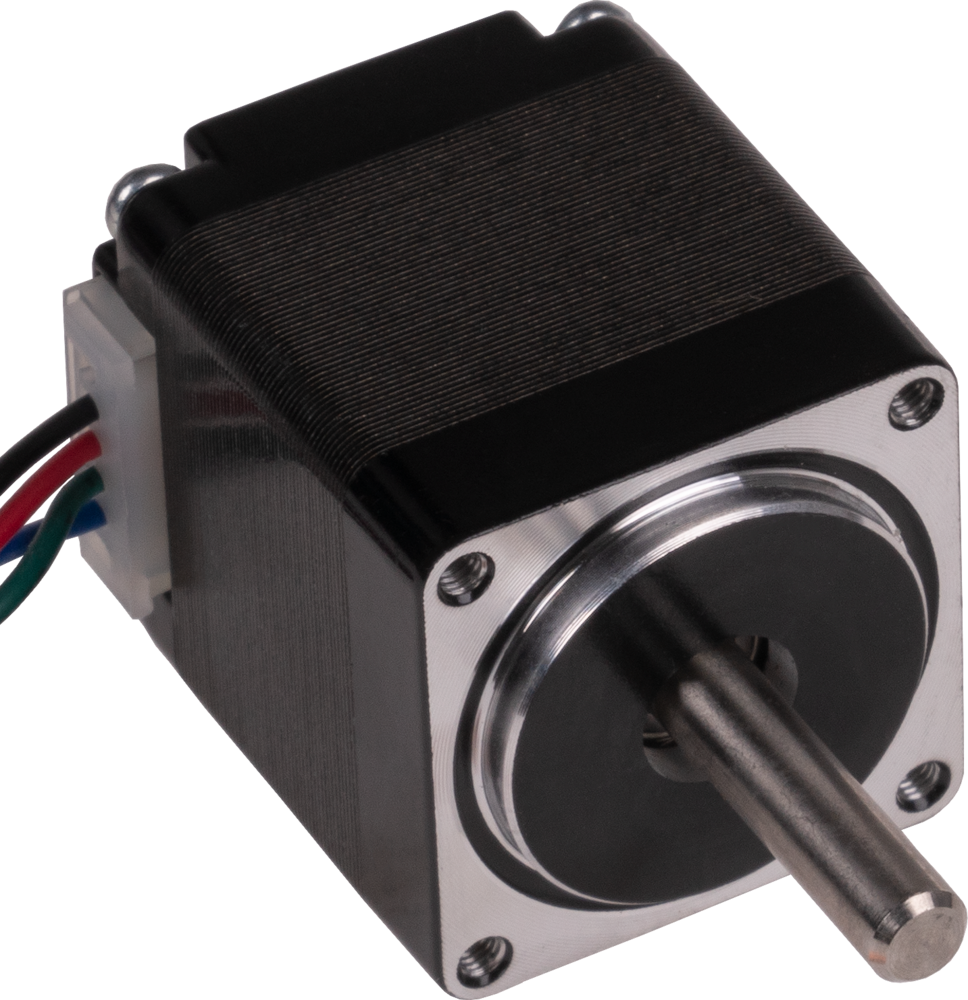

Stepper motor NEMA11 - 5V, 0,42A, 1,8° step, 5mm skaft
Varenr:
H62774
EAN:
4250236821719
NEMA11-serien er meget små stepmotorer med højt drejningsmoment, der kan nå hastigheder på op til 3000 rpm. Disse motorer bruges ofte i modelfremstillings- og fremstillingsscenen såvel som i det industrielle miljø (positionering af optik, doseringspumper, låse osv.).
Tekniske detaljer:
- Skaftmål: Ø 5 x 18mm
- Tilslutning: 4 kabler
- Holdemoment: 55 mNm
- Nominel spænding: 5,0 V
- Mærkestrøm: 0,42 A
- Trinvinkel: 1,8° ±5 %
- Antal faser: 2
- Fasemodstand: 11,9 Ohm
- Fasinduktivitet: 7,8 mH
- Isolationsmodstand: 100 MOhm min. @500 Vdc
- Isolationsklasse: B (130°C)
- Rotationsinerti: 9 g·cm²
- Spærremoment: 5 mNm
- Tilladt driftstemperatur: -10 til 50°C
- Størrelse: 28 x 29 x 32mm
The NEMA11-series are very small high torque stepper motors that can reach speeds of up to 3000 rpm. These motors are often used in the model making and maker scene as well as in the industrial environment (Positioning of optics, dosing pumps, interlocks, etc.).
Specifications:
- Shaft dimensions: Ø 5 x 18 mm
- Connection: 4 cables
- Holding torque: 55 mNm
- Rated voltage: 5.0 V
- Rated current: 0.42 A
- Step angle: 1.8 ° ±5 %
- Number of Phases: 2
- Phase resistance: 11.9Ohm
- Phase inductivity: 7.8 mH
- Isolation resistance: 100 MOhm min. @500 V DC
- Isolation class: B (130°C)
- Rotational inertia: 9 g·cm²
- Detent torque: 5 mNm
- Permitted operating temperature: -10 to 50 °C
- Dimensions: 28 x 29 x 32 mm
