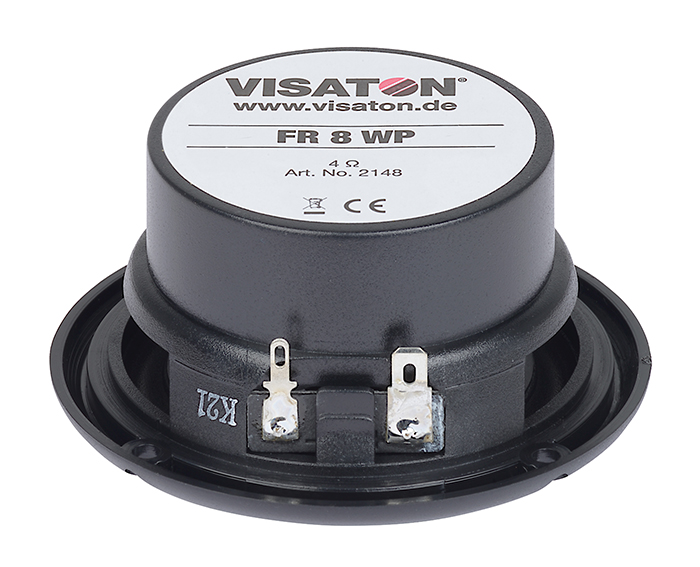

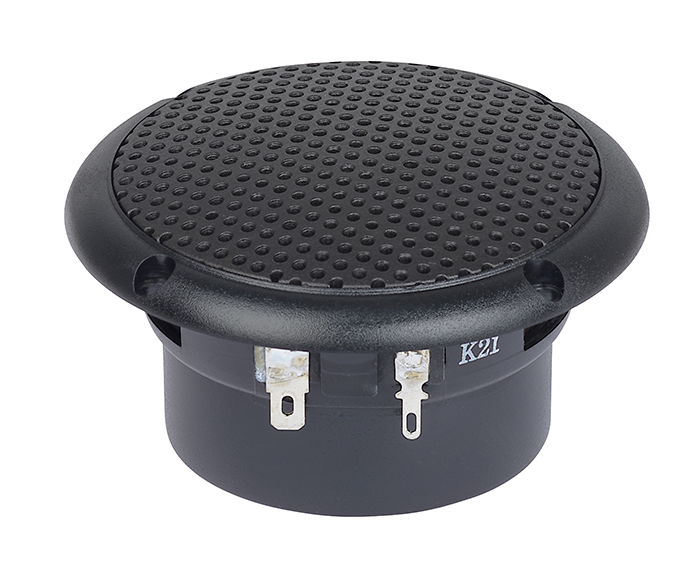

Full range højttaler - 4ohm / 15W (Ø73mm), IP65
Varenr:
H62701
EAN:
5705412627016
Tekniske detaljer:
- Producent (varemærke): VISATON
- Type lydtransducer: Højttaler
- Type højttaler: Loftsmontering, generel, vandtæt
- Effekt: 15W
- Maksimal effekt: 25W
- Impedans: 4 ohm
- Husstørrelse: Ø90x49mm
- Operationel temperatur: -40...80°C
- Lydfrekvens: 100...20000Hz
- Paneludskærings diameter: Ø74mm
- Lydniveau: 84dB
- Resonansfrekvens: 158Hz
- Farve: Sort
- Diameter: Ø73mm
- IP-rating: IP65
- Anvendelse af lydtransducere: I åbne køretøjer, udendørs lydsystemer, lydsystemer til saunaer og dampbade
- Relaterede varer: VS-FR8WP
- Monteringsdybde: 37mm
- Flange diameter: Ø90mm
- Monteringshullers stigning: 58,34mm
- Båndbredde: 100Hz...200kHz ved -8dB
- Modstandsdygtighed over for: Korrosion, vand
Specifications:
- Manufacturer: VISATON
- Type of sound transducer: Loudspeaker
- Kind of loudspeaker: Ceiling mount, general purpose, waterproof
- Power: 15W
- Maximum power: 25W
- Impedance: 4ohm
- Body dimensions: Ø90x49mm
- Operating temperature: -40...80°C
- Sound frequency: 100...20000Hz
- Panel cutout diameter: 74mm
- Sound level: 84dB
- Resonant frequency: 158Hz
- Colour: Black
- Diameter: 73mm
- IP rating: IP65
- Sound transducers application: In open vehicles, outdoor sound systems, sound systems for saunas and steam baths
- Related items: VS-FR8WP
- Mounting depth: 37mm
- Flange diameter: 90mm
- Mounting holes pitch: 58.34mm
- Bandwidth: 100Hz...200kHz @ -8dB
- Resistance to: Corrosion, water
