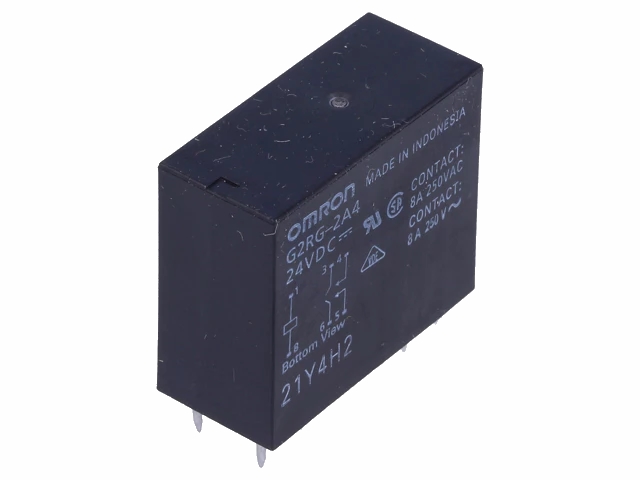

Miniature relæ - 24VDC 8A, 2 x slutte (DPST-NO), 6-ben 5mm
Varenr:
H61070
EAN:
5705412610704
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type relæ: Elektromagnetisk
- Kontaktkonfiguration: DPST-NO
- Nominel spolespænding: 24Vdc
- AC kontaktstrøm (ved resistiv belastning): 8A 250Vac
- DC kontaktstrøm (ved resistiv belastning): 8A 24Vdc
- Maks. kontaktstrøm: 8A
- Maks. koblet spænding: 125Vdc, 380Vac
- Relævariant: Miniature
- Montering: Printhul
- Spolemodstand: 720 Ohm
- Driftstid: 15ms
- Udgivelsestid: 5ms

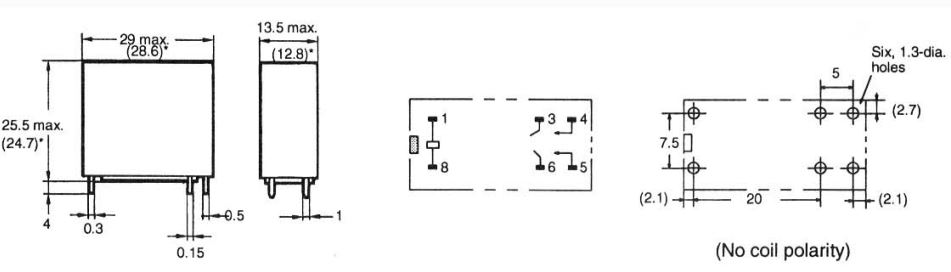

- Husstørrelse: 29x13,5x25,5mm
- Spolens strømforbrug: 800mW
- Operationel temperatur: -40...70°C
- Relæserie: G2RG
- Kontaktmodstand: 100 mOhm
- Antal ben: 6
- Benafstand: 5mm
- Spolestrøm: 33,3mA
- Kapslingsbeskrivelse: Hermetisk forsegling
Specifications:
- Manufacturer: OMRON OCB
- Type of relay: Electromagnetic
- Contacts configuration: DPST-NO
- Rated coil voltage: 24Vdc
- AC contacts rating @R: 8A 250V AC
- DC contacts rating @R: 8A 24Vdc
- Contact current max.: 8A
- Switched voltage: Max. 125Vdc, max. 380V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 720 Ohm
- Operate time: 15ms
- Body dimensions: 29x13.5x25.5mm
- Release time: 5ms
- Coil power consumption: 800mW
- Operating temperature: -40...70°C
- Relay series: G2RG
- Contact resistance: 100 mOhm
- No. of pins: 6
- Terminal pitch: 5mm
- Coil current: 33.3mA
- Enclosure description: Hermetic seal
