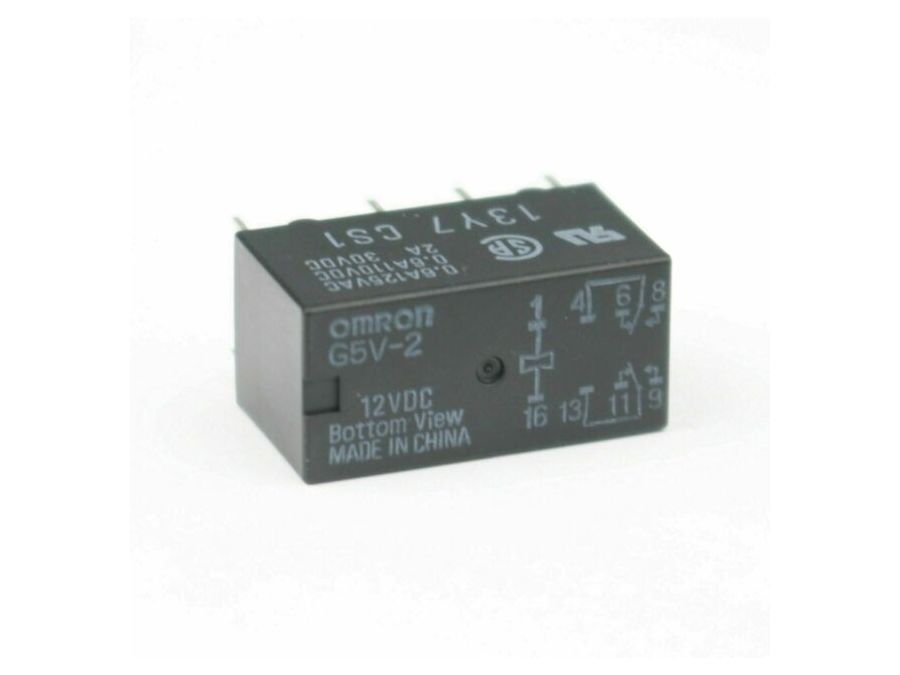

Miniature relæ - 12VDC / 0,5A, 2 x skifte, DPDT (DIL16)
Varenr:
H59309
EAN:
5705412593090
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type relæ: Elektromagnetisk

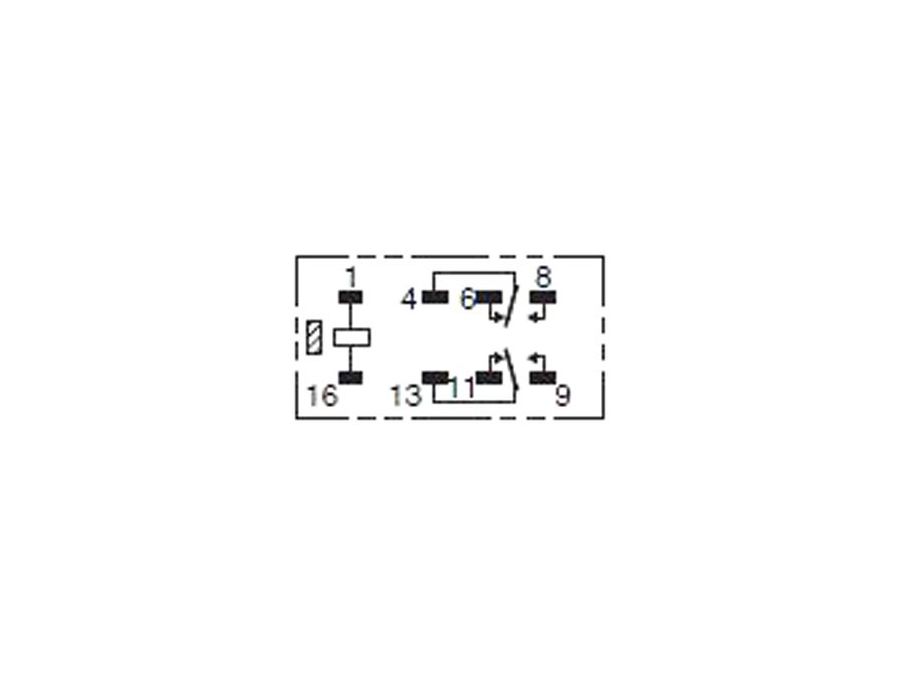

- Kontaktkonfiguration: DPDT
- Nominel spolespænding: 12Vdc
- AC kontakter rating @R: 0.5A 125Vac
- DC kontakt rating @R: 2A 30Vdc
- Kontaktstrøm max: 2A
- Maks. Omskiftet spænding: 125Vac, maks. 125Vdc
- Relævariant: Miniature
- Montering: PCB
- Spolemodstand: 288 Ohm
- Størrelse: 20,5 x 10,1 x 11,5mm
- Spole strømforbrug: 500mW
- Operationel temperatur: -25...70°C
- Kontaktmodstand: 50 mOhm
- Terminalafstand: 5mm
- Spolestrøm: 41,7mA
Specifications:
- Manufacturer: OMRON OCB
- Type of relay: Electromagnetic
- Contacts configuration: DPDT
- Rated coil voltage: 12Vdc
- AC contacts rating @R: 0.5A 125Vac
- DC contacts rating @R: 2A 30Vdc
- Contact current max.: 2A
- Switched voltage: Max. 125Vac, max. 125Vdc
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 288 Ohm
- Body dimensions: 20.5 x 10.1 x 11.5mm
- Coil power consumption: 500mW
- Operating temperature: -25...70°C
- Contact resistance: 50 mOhm
- Terminal pitch: 5mm
- Coil current: 41.7mA
