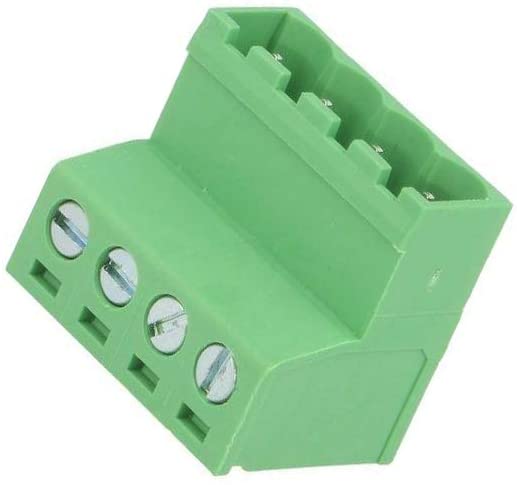

Indstik skrueterminal - 4P han, 5,08mm, 2,5mm², Grøn
Varenr:
H58601
EAN:
5705412586016
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Tilslutningstype: Tilslutbar klemrække
- Benafstand: 5,08mm
- Antal ben: 4
- Benkonfiguration: 1x4
- Orientering: Lige
- Køn: Han
- Mekanisk montage: Til kabel
- Elektrisk montage: skrueterminal
- Farve: Grøn
- Nominel spænding: 320V
- Mærkestrøm: 20A
- Husmateriale: PA66
- Låsesystem: Friktionslås
- Antændelighedsklasse: UL94V-0
- Overholder normen: CE, UL
- Operationel temperatur: -40...105°C
- Kontaktmateriale: Kobber
- Ledningsstørrelse: 28AWG...12AWG
- Ledertværsnit: 2,5mm2
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: Pluggable terminal block
- Contacts pitch: 5.08mm
- Number of ways: 4
- Type of pin configuration: 1x4
- Spatial orientation: Straight
- Kind of connector: Male
- Mechanical mounting: For cable
- Electrical mounting: Cage clamp, screw terminal
- Colour: Green
- Rated voltage: 320V
- Current rating: 20A
- Body material: PA66
- Locking system: Latch
- Flammability rating: UL94V-0
- Conform to the norm: CE, UL
- Operating temperature: -40...105°C
- Contact material: Copper
- Wire size: 28AWG...12AWG
- Wire cross section: 2.5mm2
