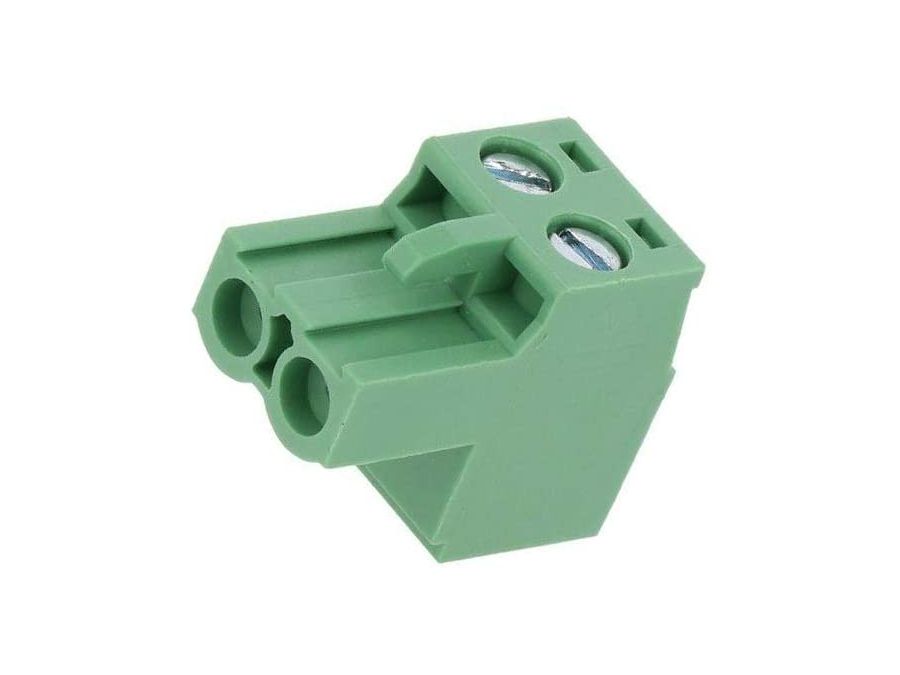

Indstik skrueterminal - 2P hun, 5,08mm, 2,5mm², Grøn
Varenr:
H57880
EAN:
5705412578806
Tekniske detaljer:
- Producent (varemærke): DEGSON ELECTRONICS
- Tilslutningstype: Tilslutbar klemrække
- Kontaktafstand: 5,08mm
- Antal måder: 2
- Orientering: Lige
- Type stik: Hun
- Mekanisk montage: Til kabel
- Elektrisk montage: Burklemme, skrueterminal
- Farve: Grøn
- Nominel spænding: 320V
- Mærkestrøm: 20A
- Type pin konfiguration: 1x2
- Husmateriale: PA66
- Låsesystem: Lås
- Antændelighedsklasse: UL94V-0
- Overholder normen: CE, UL
- Operationel temperatur: -40...105°C
- Kontaktmateriale: Fosforbronze
- Antal terminaler: 2
- Ledningsstørrelse: 28AWG...12AWG
- Trådtværsnit: Ø2,5mm2
Specifications:
- Manufacturer: DEGSON ELECTRONICS
- Type of connector: Pluggable terminal block
- Contacts pitch: 5,08mm
- Number of ways: 2
- Spatial orientation: Straight
- Connector: Plug
- Kind of connector: Female
- Mechanical mounting: For cable
- Electrical mounting: Cage clamp, screw terminal
- Colour: Green
- Rated voltage: 320V
- Current rating: 20A
- Type of pin configuration: 1x2
- Body material: PA66
- Locking system: Latch
- Flammability rating: UL94V-0
- Conform to the norm: CE, UL
- Operating temperature: -40...105°C
- Contact material: Phosphor bronze
- Number of terminals: 2
- Wire size: 28AWG...12AWG
- Wire cross section: 2.5mm2
