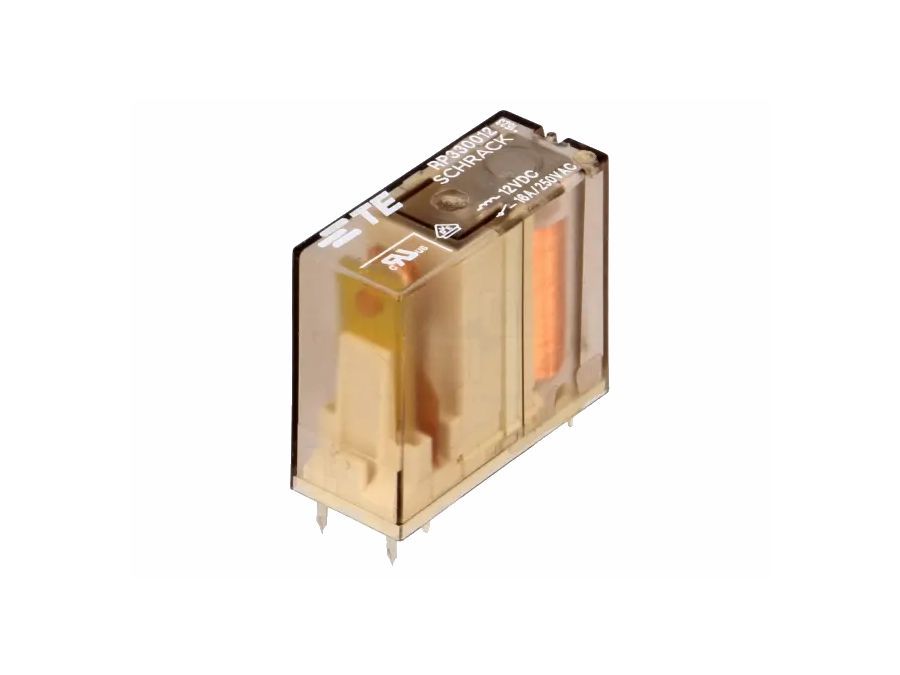

Miniature relæ - 12VDC / 16A, 1 x slutte (SPST-NO)
Varenr:
H57273
EAN:
5705412572736
- Producent (varemærke): TE Connectivity
- Relæ type: elektromagnetisk

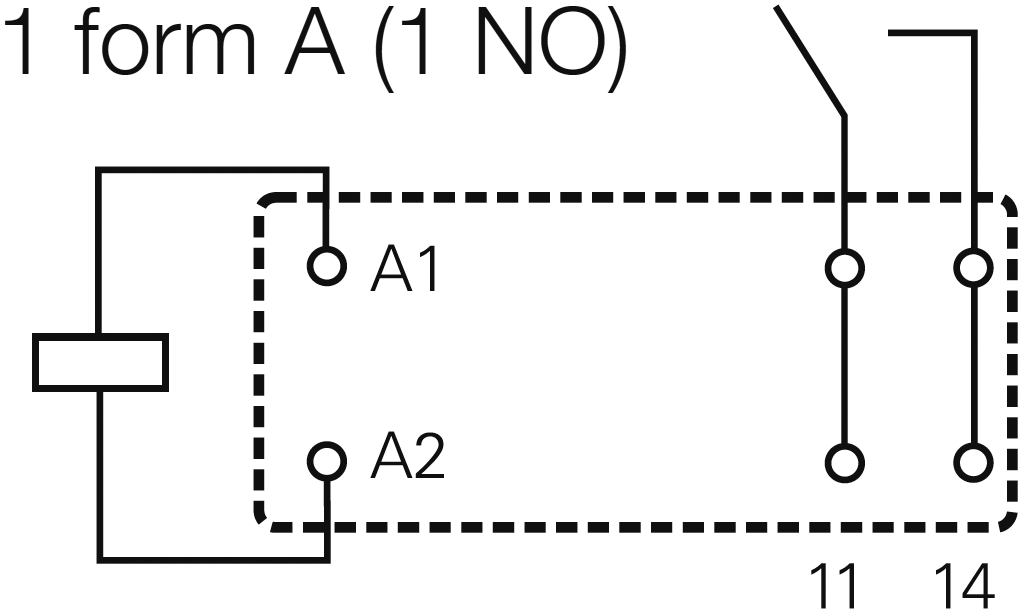

- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 12Vdc
- Nominel vekselstrømskontakt (ved resistiv belastning): 16A / 250Vac
- DC kontakter vurdering (ved resistiv belastning): 16A / 24Vdc
- Maks. kontaktstrøm: 16A
- Maks. Koblingsspænding: 300Vdc, maks. 440Vac
- Relævariant: miniature
- Montering: PCB
- Spolemodstand: 270 Ohm
- Driftstid: 8 ms
- Husstørrelse: 29x12,6x25,5mm
- Udgivelsestid: 2 ms
- Spolens strømforbrug: 500mW
- IP-klassificering: IP40
- Mekanisk holdbarhed: 30000000 cyklusser
- Operationel temperatur: -40...70°C
- Vægt: 18g
- Relæserie: RPII / 1
- Skiftekapacitet: 4kVA
- Kontaktmateriale: AgCdO
- Benafstand: 5mm
- Spolestrøm: 41,7 mA
- Manufacturer: TE Connectivity
- Type of relay: electromagnetic
- Contacts configuration: SPST-NO
- Rated coil voltage: 12V DC
- AC contacts rating (at resistive load): 16A / 250V AC
- DC contacts rating (at resistive load): 16A / 24V DC
- Contact current max.: 16A
- Switched voltage: max. 300V DC, max. 440V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 270?
- Operate time: 8ms
- Body dimensions: 29x12.6x25.5mm
- Release time: 2ms
- Coil power consumption: 500mW
- IP rating: IP40
- Mechanical durability: 30000000 cycles
- Operating temperature: -40...70°C
- Weight: 18g
- Relay series: RPII/1
- Switching capacity: 4kVA
- Contact material: AgCdO
- Terminal pitch: 5mm
- Coil current: 41.7mA
