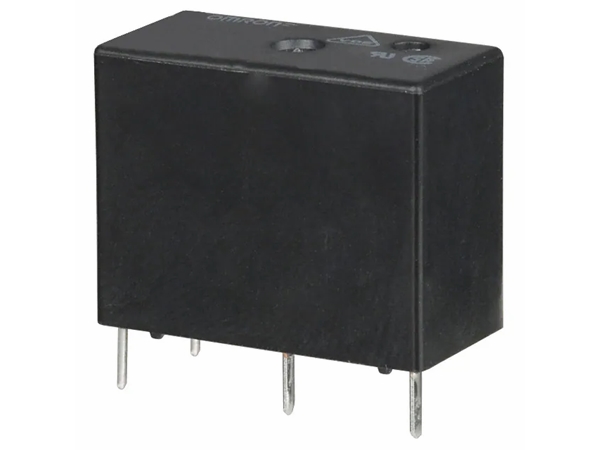

Miniature relæ - 24VDC / 5A, 1 x skifte (20x10x16mm)
Varenr:
H55012
EAN:
5705412550123
Tekniske detaljer:
- Producent (varemærke): OMRON OCB
- Type relæ: Elektromagnetisk
- Skiftemetode: SPDT
- Nominel spolespænding: 24Vdc
- AC-kontaktstrøm (ved resistiv belastning): 3A (125Vac)
- DC-kontaktstrøm (ved resistiv belastning): 3A (30Vdc)
- Maks. kontaktstrøm: 5A
- Maks. koblet spænding: 30Vdc, 250Vac
- Relævariant: Miniature
- Montering: Printhul
- Spolemodstand: 1,44 kOhm
- Husstørrelse: 20,3x10,3x15,8mm
- Spolens strømforbrug: 400mW
- Mekanisk holdbarhed: 5000000 cyklusser
- Operationel temperatur: -40...70°C
- Relæserie: G5SB
- Kontaktmodstand: 100mOhm
- Elektrisk levetid: 200.000 cyklusser
- Terminalafstand: 2,54mm
- Spolestrøm: 16,7mA
- Kapslingsbeskrivelse: Hermetisk forsegling
Specifications:
- Manufacturer: OMRON OCB
- Type of relay: Electromagnetic
- Switching method: SPDT
- Rated coil voltage: 24V DC
- AC contacts rating at resistance load: 3A (125V AC)
- DC contacts rating at resistance load: 3A (30V DC)
- Contact current max.: 5A
- Switched voltage: Max. 30V DC, max. 250V AC
- Relay variant: Miniature
- Mounting: PCB
- Coil resistance: 1.44 kΩ
- Body dimensions: 20.3x10.3x15.8mm
- Coil power consumption: 400mW
- Mechanical durability: 5000000 cycles
- Operating temperature: -40...70°C
- Relay series: G5SB
- Contact resistance: 100mΩ
- Electrical life: 200000 cycles
- Terminal pitch: 2.54mm
- Coil current: 16.7mA
- Enclosure description: Hermetic seal
