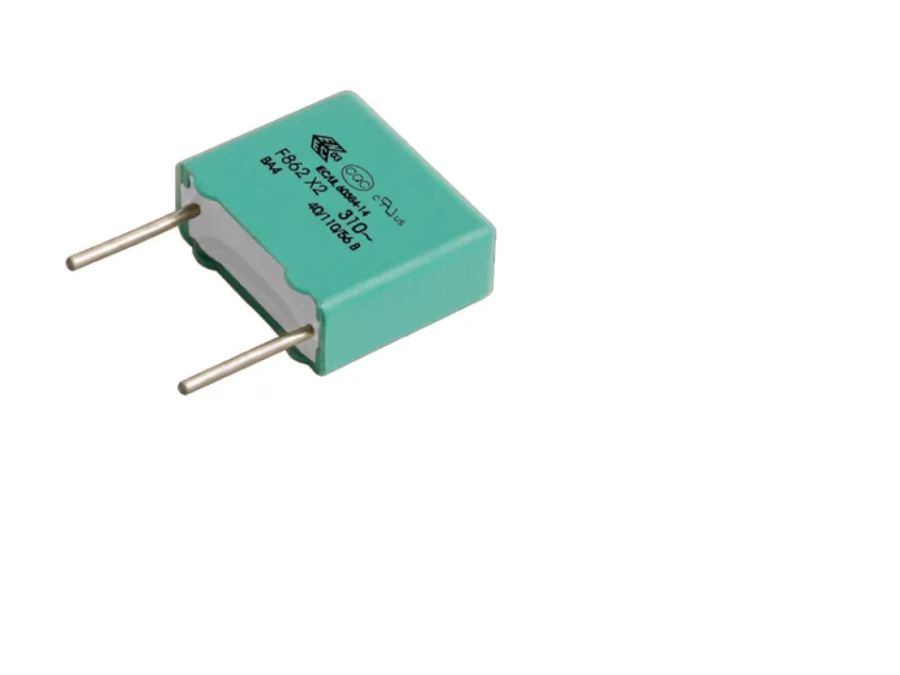

X2 støjkondensator - 820nF (0,82uF) 310VAC (22,5mm)
Varenr:
H54454
EAN:
5705412544542
Tekniske detaljer:
- Producent (varemærke): KEMET
- Kondensatortype: polypropylen
- Type kondensator: X2
- Kapacitans: 0,82µF
- Maks. driftsspænding: 310Vac
- Husstørrelse: 26x11x20mm
- Montering: Printhul
- Tolerance: ±10 %
- Terminalafstand: 22,5mm
- Kondensatoregenskaber: ikke smeltelig under nedbrud
- Kondensatoranvendelse: AC-applikationer
- I overensstemmelse med norm: AEC Q200
- Antændelighedsklasse: UL94V-0
- Materialetype: flammehæmmende
- Leder-dimensioner: L 17mm
- Klimaklasse: 40/110/56, IEC 60068-1
- Bruttovægt: 6,7g
Specifications:
- Manufacturer: KEMET
- Type of capacitor: polypropylene
- Kind of capacitor: X2
- Capacitance: 0.82µF
- Max. operating voltage: 310V AC
- Body dimensions: 26x11x20mm
- Mounting: THT
- Tolerance: ±10%
- Terminal pitch: 22.5mm
- Capacitors features: non-fusible under breakdown
- Capacitor application: AC applications
- Conform to the norm: AEC Q200
- Flammability rating: UL94V-0
- Kind of material: flame retardant
- Leads dimensions: L 17mm
- Climate class: 40/110/56, IEC 60068-1
- Gross weight: 6.7 g
