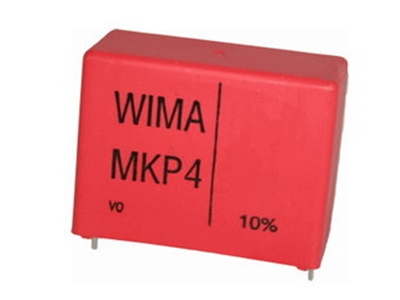

MKP4 polypropylen kondensator - 680nF (0,68uF) 630V 27,5mm
Varenr:
H53843
EAN:
5705412538435
WIMA-kondensatorer af metalliseret polypropylenfilmtype med pålidelige interne afslutninger. De bruger et enkelt koncept: ledningen skaber elektrisk kontakt med elektrodens komplette overflade, hvilket sikrer minimal induktans. Dette resulterer i kondensatorer med en god dæmpning og selvresonans. Til pulsapplikationer, fx switchtilstand strømforsyninger, tv og monitor sæt, belysning og lyd / video udstyr.
Tekniske detaljer:
- Producent (varemærke): WIMA
- Type kondensator: polypropylen
- Kapacitans: 680nF
- Benafstand: 27,5mm
- Tolerance: ±10%
- Husstørrelse: 11x21x31.5mm
- Benstørrelse: len. 6mm
- Klimaklasse: 55/100/56
- Operationel temperatur: -55...100°C
- Kabinetmateriale: UL94V-0 (Selvslukkende)
- Pulsmodstand: 200V /µS
- Montering: Printhul
- Kapacitans - µF: 0,68 µF
- Maks. driftsspænding: 280Vac, 630Vdc
WIMA capacitors of metallised polypropylene film type with reliable internal end terminations. They use a simple concept : the wire makes electrical contact with the complete surface of the electrode, which ensures minimal inductance. This results in capacitors with a good attenuation og self-resonance. For pulse applications e.g. Switch mode power supplies, TV and monitor sets, Lighting and Audio/video equipment.
Specifications:
- Manufacturer: WIMA
- Type of capacitor: polypropylene
- Capacitance: 680nF
- Terminal pitch: 27,5mm
- Tolerance: ±10%
- Body dimensions: 11x21x31.5mm
- Leads dimensions: len. 6mm
- Climate class: 55/100/56
- Operating temperature: -55...100°C
- Enclosure material: self-extinguishing, UL94V-0
- Pulse resistance: 200V/µs
- Mounting: THT
- Capacitance - µF: 0,68µF
- Max. operating voltage: 280VAC, 630VDC
