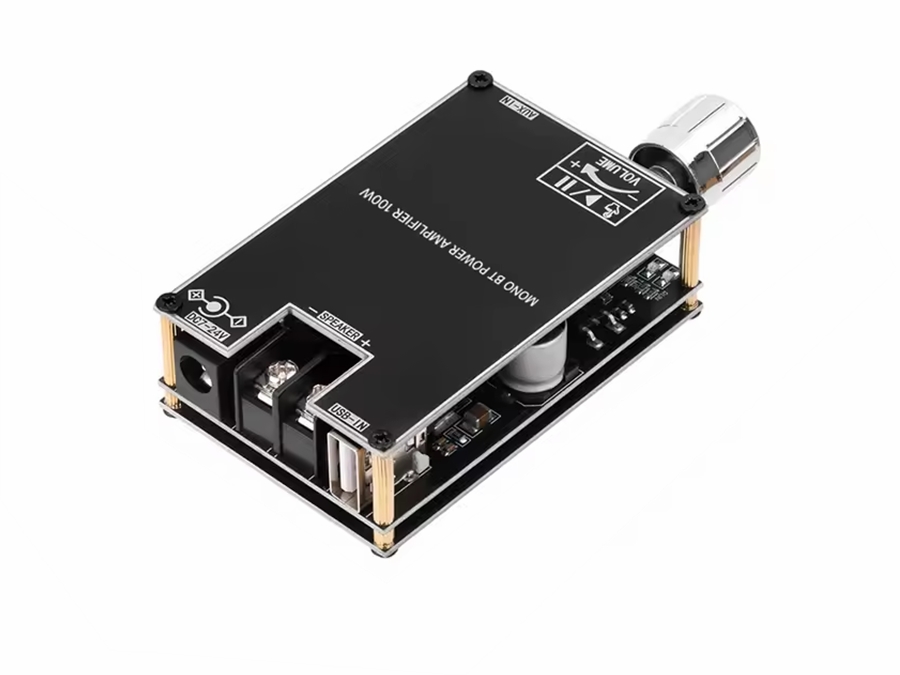

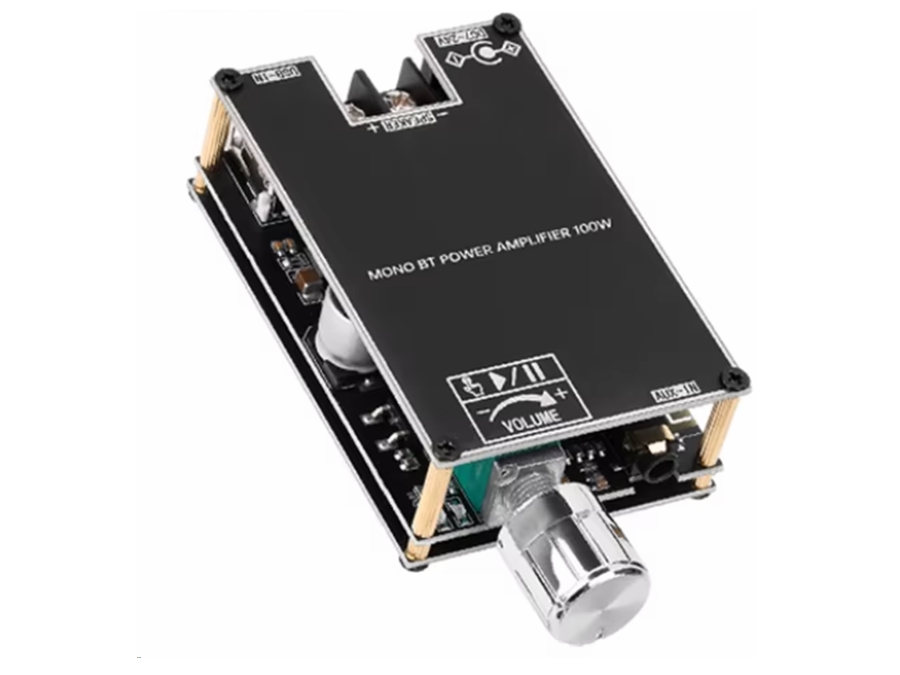

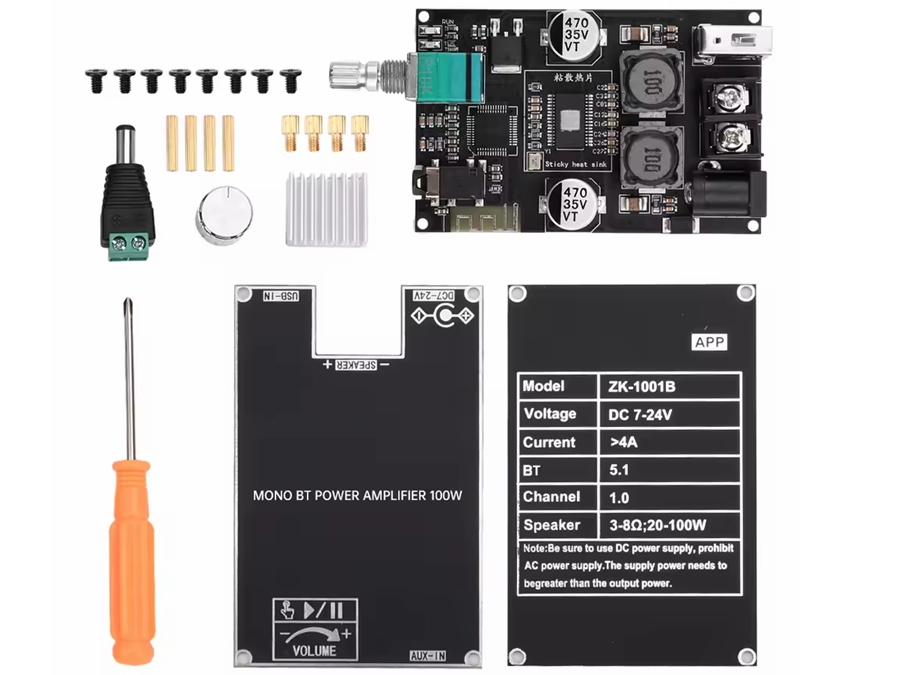

Mono audioforstærker m. Bluetooth - 1 x 100W, TPA3116
Varenr:
H52018
EAN:
5705412520188
12/24Vdc mono lydforstærkermodul til dine DIY lydprojekter. Velegnet til fx passive højttalere. Baseret på TPA3116 for forbedret input-følsomhed og højopløst lydkvalitet. Bluetooth giver dig mulighed for problemfrit at streame din lyd direkte fra enhver smartenhed.
Egenskaber:
- Kompatibel med alle højttalere fra 20 til 100W, 3-8 ohm
- Lydstyrken kan justeres med drejeknap
- Knap funktioner:
- Klik: Afspil/Pause
- Dobbeltklik: Næste spor
- Tredobbelt tryk: Gå ind i eller forlad TWS-tilstand
- Langt tryk: Sluk/tænd
- Beskyttelsesmekanismer: Indgang anti reverse, overtemperatur, overstrøm, kortslutning, antistatisk beskyttelse
- Understøtter APP-funktionalitet. Rediger BT-navn, adgangskodeindstillinger, juster lydstyrken for promptlyd, tænd/sluk promptlyd, søvnunderstøttende musik, firmwareopgradering og mere.
Tekniske detaljer:
- Arbejdstilstand: Klasse D
- Teknologi: TPA3116D2
- Indgang: Bluetooth 5.1 + AUX-lyd + USB-flashdrev
- Udgang: Mono
- Maks. udgangseffekt: 100W
- Driftsspænding: 7-24Vdc
- Frekvensgang: 20Hz til 20KHz
- Signal/støjforhold: >90 db
- Bluetooth transmissionsafstand: 15m
- Strømforsyning:
- 12Vdc: 2 x 20W 8ohm / 2 x 35W 4ohm
- 19Vdc: 2 x 35W 8ohm / 2 x 60W 4ohm
- 24Vdc: 2 x 50W 8ohm / 2 x 100W 4ohm
- Størrelse: 89x45x20mm
12/24Vdc mono audio amplifier module for your DIY audio projects. Suitable for e.g. passive speakers. Based on TPA3116 for improved input sensitivity and high-definition sound quality. Bluetooth lets you seamlessly stream your audio directly from any smart device.
Features:
- Compatible with all speakers from 20 to 100W, 3-8 ohm
- Volume ajustable via turn-button
- Button functions:
- Click: Play/Pause
- Double click: Next track
- Triple tap: Enter or exit TWS mode
- Long press: Power off/on
- Protection mechanisms: Input anti reverse, over temperature, over current, short circuit, anti-static protection
- Supports APP functionality. Modify BT name, password settings, adjust the volume of prompt sound, turn on/off prompt sound, sleep aid music, firmware upgrade, and more.
Specifications:
- Working mode: Class D
- Technology: TPA3116D2
- Input: Bluetooth 5.1 + AUX audio + USB flash drive
- Output: Mono
- Max. output power: 100W
- Operating voltage: 7-24Vdc
- Frequency response: 20Hz to 20KHz
- Signal/noise ratio: >90 db
- Bluetooth transmission distance: 15m
- Power supply:
- 12Vdc: 2 x 20W 8ohm / 2 x 35W 4ohm
- 19Vdc: 2 x 35W 8ohm / 2 x 60W 4ohm
- 24Vdc: 2 x 50W 8ohm / 2 x 100W 4ohm
- Dimensions: 89 x 45 x 20mm
