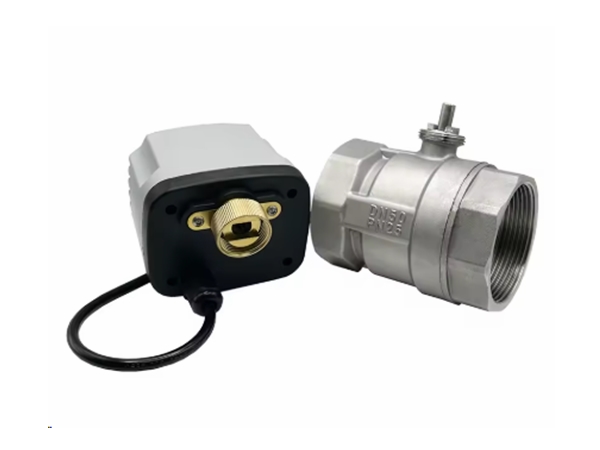

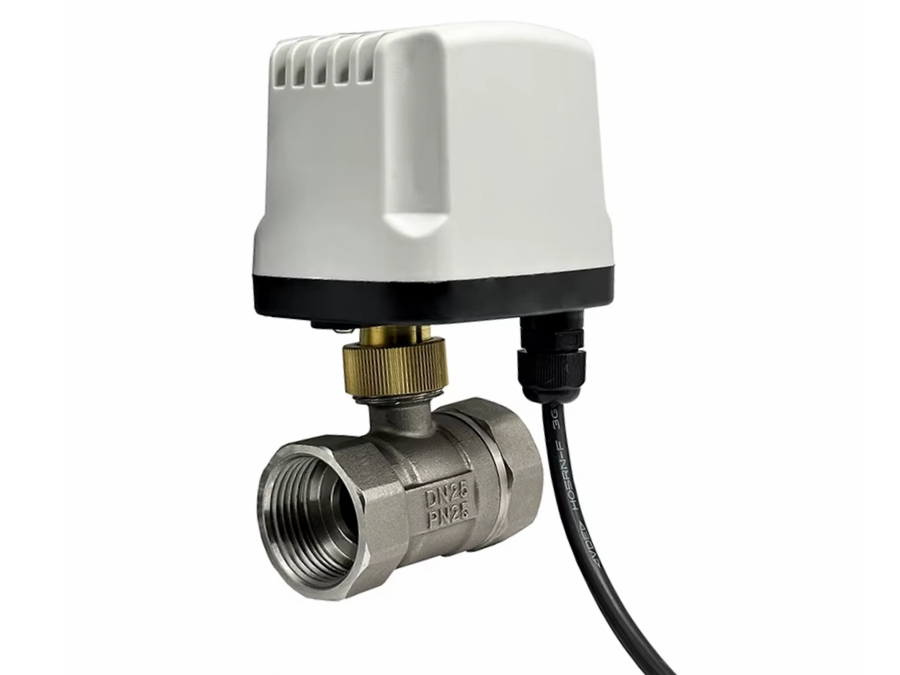

Motoriseret Kugleventil, Rustfri stål - 1" (DN25) NC, 230Vac
Varenr:
H51910
EAN:
5705412519106
1" (DN25) normalt lukket 230Vac 2-leder elektrisk kugleventil i rustfrit stål til vand/olie/væske. Erstatter magnetventiler med den fordel, at denne type ventil ikke har krav til lavere væsketryk og understøtter tovejsstrømning. Denne rustfri stål-variant kan håndtere et højere væsketryk end tilsvarende messing-variant.
Denne ventil i rustfrit stål er bedre end en messingventil til væsker, der er ætsende, såsom sure opløsninger, saltvand eller mange industrielle kemikalier, samt til højtemperatur- og højtrykssystemer som i olie- og gasindustri og kemisk forarbejdning.
Tekniske detaljer:
- Ventil-husmateriale: 304 rustfrit stål
- Spænding: 230 Vac
- Arbejdsform: NC (normalt lukket)
- Gevind: 1" (DN25), BSP
- Strømforbrug: 6W (kun når ventilen åbner/lukker)
- Åbne/lukke tid: 3-5 sek.
- Ventilhus-trykmodstand (PN): 25 bar (2,5MPa)
- Maks. differenstryk (Delta P): 10 bar (1,0MPa)
- Medium: Varmt/koldt vand, olie, 60% ethylenglycolopløsning
- Medietemperatur: 0...95°C

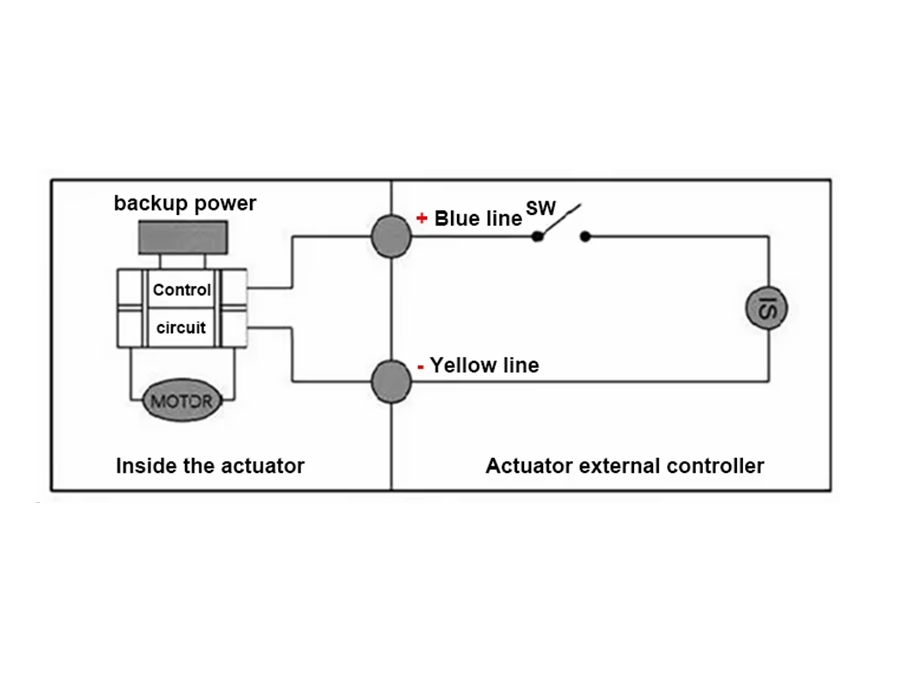

- Elektrisk montage: 2-leder kabel (medfølger ikke)
- IP-rating: IP65
- Mærkninger: CE
1" (DN25) Normally Closed 230Vac 2-wire stainless steel Electric Ball Valve for water/oil/liquid. Replaces Solenoid Valves, with the advantage that this type of valve has no lower liquid pressure requirements and supports bi-directional flow.
This stainless steel valve is better than a brass valve for liquids that are corrosive, such as acidic solutions, saltwater, or many industrial chemicals, as well as for high-temperature and high-pressure systems like those in steam lines, oil and gas industries, and chemical processing.
Pls. contact us if you need this valve in other versions (12Vdc/24Vdc, NO/NC, DN15/20/32/40/50).
Specifications:
- Valve body material: 304 Stainless steel
- Voltage: 230Vac
- Working form: NC (normally cloced)
- Thread: 1" (DN25), BSP
- Power consumption: 6W (only when valve opens/closes)
- Open/close time: 3-5 sec.
- Valve body pressure resistance (PN): 25 bar (1.6MPa)
- Max. differential pressure (Delta P): 10 bar (1.0MPa)
- Medium: Hot/cold water, oil, 60% Ethylene glycol solution
- Medium temperature: 0...95°C
- Electrical mounting: 2-wire cable (not included)
- IP-rating: IP65
- Markings: CE
