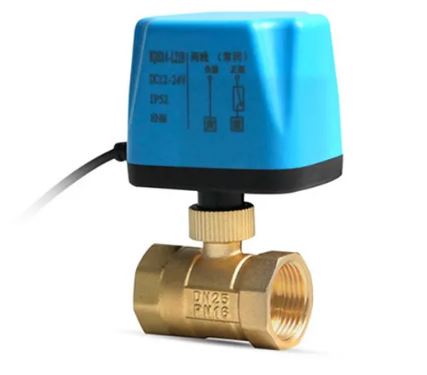

Motoriseret Kugleventil - 1" (DN25), NC, åbner ved 230Vac
Varenr:
H51878
EAN:
5705412518789
1" (DN25) NC (Normalt lukket) 230Vac 2-leder elektrisk kugleventil af messing til vand/olie/væske. Erstatter magnetventiler, med den fordel at denne type ventil ikke har minimumskrav til væsketryk og i øvrigt understøtter tovejs flow.
Kontakt os gerne, hvis du har brug for denne ventil i andre versioner (12Vdc/24Vdc, NO/NC, DN15/20/32/40/50).
Tekniske detaljer:
- Ventilhus materiale: Messing
- Spænding: 230Vac
- Arbejdsform: NC (normalt lukket)
- Gevind: 1" (DN25)
- Strømforbrug: 6VA
- Ventil-legemetrykmodstand: 1,6mpa
- Åbning- og lukketid: 15 sek.
- Medier: Varmt/koldt vand, olie, 50% ethylenglycolopløsning
- Medie temperatur: 0...90°C
1" (DN25) Normally Closed 230Vac 2-Wire Brass Electric Ball Valve for Water/Oil/Liquid. Replaces Solenoid Valves, with the advantage that this type of valve has no lower liquid pressure requirements and supports bi-directional flow.
Pls. contact us if you need this valve in other versions (12Vdc/24Vdc, NO/NC, DN15/20/32/40/50).
Specifications:
- Valve body material: Brass
- Voltage: 230Vac
- Working form: NC (normally cloced)
- Thread: 1" (DN25)
- Power consumption: 6VA
- Valve body pressure resistance: 1.6mpa
- Opening and closing time: 15s
- Medium: Hot/cold water, Oil, 50% Ethylene glycol solution
- Medium temperature: 0...90°C
