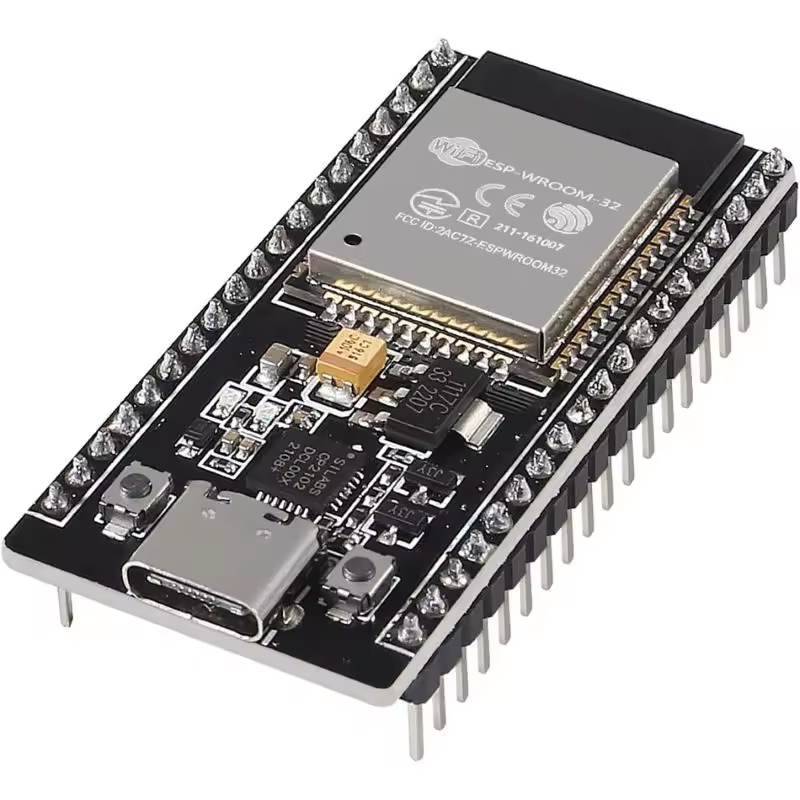

NodeMCU ESP32-WROOM-32D, USB-C, Wi-Fi, Bluetooth
Varenr:
H51866
EAN:
5705412518666
NodeMcu ESP32 Wroom 38-pin CP2102 Udviklingsboard. Med denne nye NodeMCU-ESP32 er komfortabel prototyping mulig med simpel programmering via Luascript eller Arduino IDE og det breadboard-kompatible design. Dette board har 2,4 GHz dual-mode Wifi og en BT trådløs forbindelse. Derudover er 512 KB SRAM og 4 MB flashhukommelse integreret i mikrocontroller-udviklingsboardet. Boardet har 38 pins til interfaceforbindelse, inklusive I2C, SPI, UART, DAC og ADC.
Tekniske detaljer:
- Model: NodeMCU ESP32
- Mikrocontroller: ESP32-WROOM-32D
- Urfrekvens: 160 MHz
- SRAM: 512 kB
- Hukommelse: 4 MB
- Wi-Fi: 802.11 b/g/n 2.4GHz
- Bluetooth: 4.2 og BLE (Bluetooth Low Energy)
- Digital I/O: 32 (26 brugbare)
- PWM: 16 kanaler
- Analoge udgange: 2 kanaler, 8-bit
- Analoge indgange: 16 kanaler, 12-bit
- Kommunikation: 3 serielle, 4 SPI, 2 I2C, CAN-bus, I2S stereo
- Integrerede sensorer: IR-fjernbetjening, Hall-sensor, temperatursensor, berøringssensorer, pulstæller
- Knapper: EN (Nulstil) og IO0 (Opstart)
- Programmering: Kompatibel med Arduino IDE
- Pinafstand: 0,1? (kompatibel med breadboard)
- Driftsspænding: 3,3V intern strøm og I/O. 5V-9V ekstern strøm med indbygget regulator
- Datagrænseflader: UART / I2C / SPI / DAC / ADC
- Operationel temperatur: -40...85°C
- Størrelse: 48 x 26 x 11,5mm
Tips: Før koden kan uploades, skal modulet være i "Programmeringstilstand". Når du har trykket på "Upload" i Arduino IDE'en, og testen "Forbinder" vises, skal "BOOT"-knappen på boardet trykkes ned i 3 sekunder, hvorefter koden uploades. (Ca. 5 sekunder efter at der er trykket på "Upload" i Arduino IDE'en).
With this new NodeMCU-ESP32, comfortable prototyping is possible with simple programming via Luascript or the Arduino IDE and the breadboard-compatible design. This board has 2.4 GHz dual-mode Wifi and a BT wireless connection. In addition, a 512 KB SRAM and a 4MB flash memory are integrated into the microcontroller development board. The board has 38 pins for interface connection, including I2C, SPI, UART, DAC, and ADC.
Specifications:
- Model: NodeMCU ESP32
- Microcontroller: ESP32-WROOM-32D
- Clock Frequency: 160 MHz
- SRAM: 512 kB
- Memory: 4 MB
- WiFi: 802.11 b/g/n 2.4GHz
- Bluetooth: 4.2 and BLE (Bluetooth Low Energy)
- Digital I/O: 32 (26 usable)
- PWM: 16 channels
- Analog Outputs: 2 channels, 8-bit
- Analog Inputs: 16 channels, 12-bit
- Communications: 3 Serial, 4 SPI, 2 I2C, CAN bus, I2S Stereo
- Integrated Sensors: IR remote, Hall sensor, temperature sensor, touch sensors, pulse counter
- Buttons: EN (Reset) and IO0 (Boot)
- Programming: Compatible with Arduino IDE
- Pin Spacing: 0.1? (breadboard compatible)
- Operating Voltage: 3.3V internal power and I/O. 5V-9V external power with on-board regulator
- Data Interfaces: UART / I2C / SPI / DAC / ADC
- Operating Temperature: -40...85°C
- Dimensions: 48 x 26 x 11,5mm
Hints: Before the code can be uploaded, the module must be in Programming Mode. After you have pressed Upload in the Arduino IDE and the Connecting test is displayed, the BOOT button on the board must be pressed for 3 seconds, then the code will be uploaded. (Approximately 5 seconds after Upload is pressed in the Arduino IDE).
