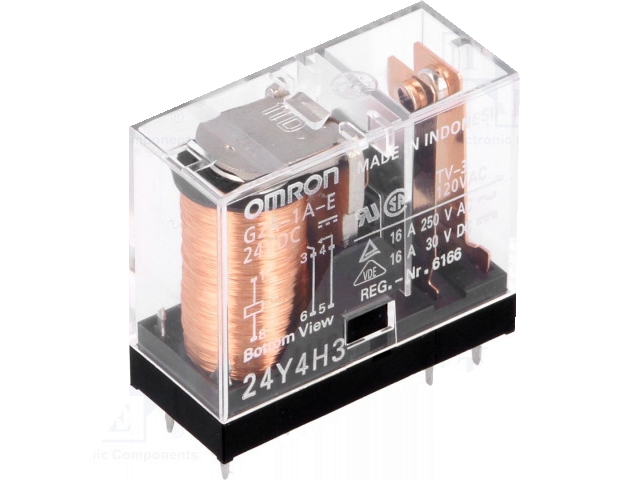

Vertikalt relæ - 24VDC / 16A, 1 x slutte (SPST-NO)
Varenr:
H47838
EAN:
5705412478380
Tekniske detaljer:
- Producent (varemærke): OMRON
- Relætype: Elektromagnetisk
- Kontaktkonfiguration: SPST-NO
- Nominel spolespænding: 24Vdc
- Maks. AC-kontaktstrøm (ved resistiv belastning): 16A / 250Vac
- Maks. DC-kontaktstrøm (ved resistiv belastning): 16A / 30Vdc
- Maks. kontaktstrøm: 16A
- Koblingsspænding: Maks. 125Vdc, maks. 380Vac
- Relævariant: Miniature
- Montering: Printhul
- Husstørrelse: 29x13x25.5mm
- Sluttetid: 15ms
- Sliptid: 5ms
- Mekanisk holdbarhed: 20000000 cykler
- Operationel temperatur: -40...70°C
- Relæserie: G2R
- Kontaktmodstand: 30mOhm
- Benafstand: 5mm
- Spolestrøm: 21,8 mA
Specifications:
- Manufacturer: OMRON
- Type of relay: electromagnetic
- Contacts konfiguration: SPST-NO
- Rated coil voltage: 24V DC
- AC contacts rating (at resistance load): 16A / 250V AC
- DC contacts rating (at resistance load): 16A / 30V DC
- Contact current max.: 16A
- Switched voltage: max. 125V DC, max. 380V AC
- Relay variant: miniature
- Mounting: PCB
- Operate time: 15ms
- Body dimensions: 29x13x25.5mm
- Release time: 5ms
- Mechanical durability: 20000000cycles
- Operating temperature: -40...70°C
- Relay series: G2R
- Contact resistance: 30mOhm
- Terminal pitch: 5mm
- Coil current: 21.8mA
