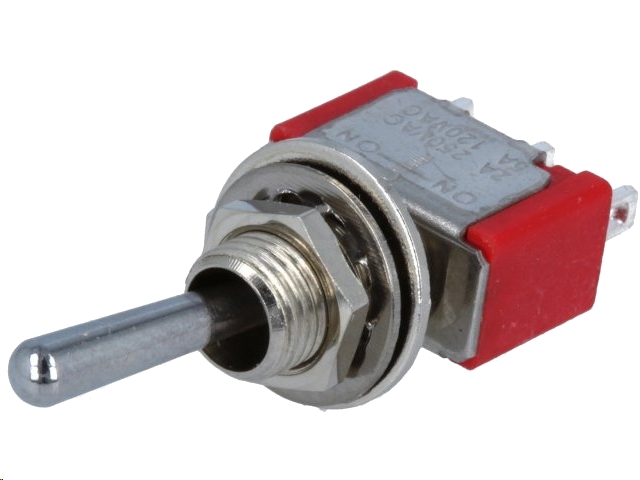

Miniature vippekontakt - 1P ON-OFF-ON (SP3T) Ø6,1mm gevind
Varenr:
H45879
EAN:
5705412458795
Tekniske detaljer:
- Kontakttype: Vippe (toggle)
- Antal stillinger: 3
- Antal stabile positioner: 3
- Kontaktkonfiguration: SP3T
- Skiftemetode: ON-OFF-ON
- Maks. AC-kontaktstrøm (ved resistiv belastning): 2A / 250VAC
- Maks. DC kontaktstrøm (ved resistiv belastning): 5A / 28V DC
- Elektrisk montage: Loddeben
- Operationel temperatur: -35...80°C
- Togglegreb: Rund
- Togglegreb højde: 10,41mm
- Monteringshul diameter: Ø6,1mm
- Husstørrelse: 12,7 x 6,86 x 8,89mm
- Kontaktflader: Forgyldt
- Mekanisk holdbarhed: 40000 cykler
Specifications:
- Type of switch: toggle
- Number of positions: 3
- Stable positions number: 3-position
- Contacts configuration: SP3T
- Switching method: ON-OFF-ON
- AC contacts rating (at resistance load): 2A / 250VAC
- DC contacts rating (at resistance load): 5A / 28V DC
- Leads: for soldering
- Operating temperature: -35...80°C
- Kind of toggle: round
- Mounting hole diameter: Ø6,35mm
- Knob height: 10,41mm
- Body dimensions: 12,7 x 6,86 x 8,89mm
- Contact plating: Silver plated
- Related items: ICE1
- Mechanical durability: 40000 cycles
