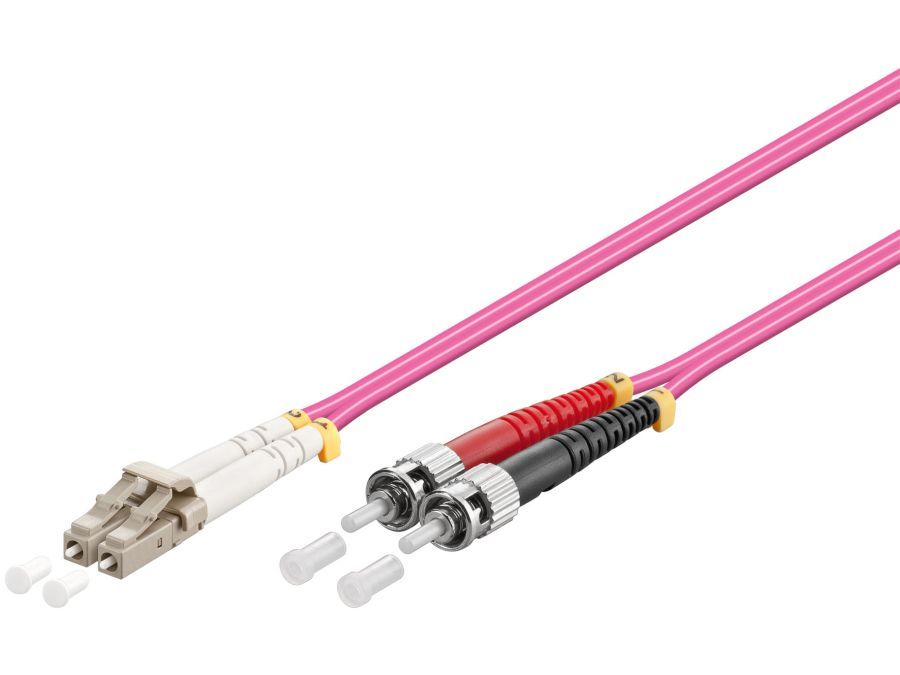

Fiberoptisk netværkskabel LC-ST multimode OM4 (20m)
Varenr:
H44764
EAN:
4040849959592
Fiber optical network cable LC-ST OM4 (laser optimized). Multimode (50/125µ) duplex.
Egenskaber:
- Designed for use in offices, industry and computer centers
- Equipped with an LC-duplex and an ST-duplex connector, including protective dust cover
- The cable sheath is halogen-free and flame retardant
- Each cable includes a test protocol
- Maximum transmission range: 100 Mbit/s: OM2/3/4 = 500m 1 Gbit/s: OM2 = 500m; OM3/OM4 =1100m 10 Gbit/s: OM2 = 82m; OM3 = 300m; OM4 = 550m
Tekniske detaljer:
- Længde: 20 m
- Port 1, type: LC-Plug
- Port 2, type: ST-Plug
- Kink protection: yes
- Diameter of fiber-core: 25 µ
- Diameter of fiber-outer cover: 125 µ
- Type: Duplex
- Outer sheath material: Polyurethan (LSZH)
- Compressive strength: 1000 N
- Bending radius: 56mm
- Operating temperature from / to (°C): : -20 ¦ +60
- Farve: violet
- Outer diameter: 2,8mm
- Wavelenght: 850 nm
- Fiber quality class: Multimode OM4
