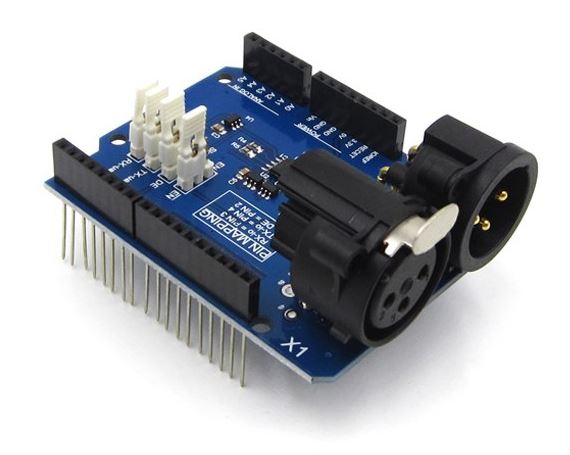

DMX shield til Arduino (færdigsamlet)
Varenr:
H42637
EAN:
5705412426374
Dette DMX / RDM Shield er en billig løsning af høj kvalitet, der giver dig mulighed for at forbinde dit Arduino-drevne design til DMX512-netværk. Dette shield er udstyret med høj-kvalitets NEUTRIK XLR 3-pol-stik (1x han og 1x hun). Det MAX485-baserede shield kan bruges som DMX Master, Slave og som RDM-transponder.
Følgende indstillinger kan konfigureres via indbyggede jumpere:
- Send data via TX eller Digital pin 4
- Modtag data via RX eller Digital pin 3
- Hardware slave mode eller Software Controlled Slave / Master via Digital Pin 2 (Kræves for RDM)
- Aktiver / deaktiver shield *
* Hvis du har konfigureret den til at bruge RX og TX stifterne, skal du deaktivere shieldet, før du kan uploade din nye sketch til Arduino boardet. Denne jumper giver dig mulighed for at deaktivere shieldet uden at frakoble det fra Arduino boardet, hvilket sparer tid.
Software:
- Conceptinectics DMX Library for Arduino kan downloades fra: Sourceforge
- Library kommer med få eksempler på hvordan man opretter et DMX Master eller DMX Slave-projekt ...
Tekniske detaljer:
- XLR tilslutninger: 3-pol XLR han/hun
This DMX / RDM Shield is a low cost high quality solution that allows you to connect your Arduino driven artwork into DMX512 networks. The shield is populated with high quality NEUTRIK XLR 3pin Connectors (1x male and 1x female). The MAX485 based shield can be used as DMX Master, Slave and as RDM transponder.
The following settings are configurable via the onboard jumpers:
- Send data via TX or Digital pin 4
- Receive data via RX or Digital pin 3
- Hardware slave mode or Software Controlled Slave/Master via Digital pin 2 (Required for RDM)
- Enable / Disable shield *
* In case you have the shield configured to use the RX and TX pins you have to disable the shield before you can upload your new sketch onto the Arduino board. This jumper allows you to disable the shield without disconnecting it from the Arduino board which saves time.
Software:
- The Conceptinectics DMX Library for Arduino can be downloaded from sourceforge: http://sourceforge.net/projects/dmxlibraryforar
- The library comes with few examples showing how to create a DMX Master or DMX Slave project...
Specifications:
- XLR connections: 3-pin
