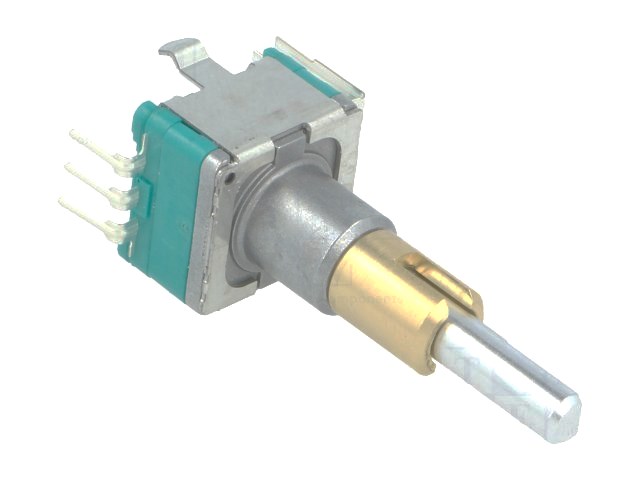

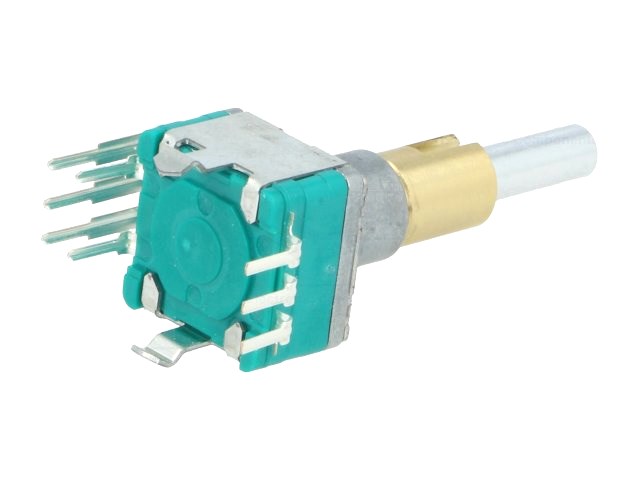

Dual axis Rotary Encoder - 30 pos., 15 pulspunkter (D 6mm)
Varenr:
H34772
EAN:
5705412347723
Rotary encoder, dobbeltakset og kontakt.
Tekniske detaljer:
- Opløsning: 15imp / revol.
- Udgangssignal: to fase A og B
- Mekanisk holdbarhed: 15000 cykler
- Driftsstrøm maks.: 10mA
- Skaftoverflade: D
- Skaft diameter: Ø6mm
- Skaftlængde: 10mm
- Driftsspænding: 5Vdc
- Antal positioner: 30
- Key stroke: 0,5mm

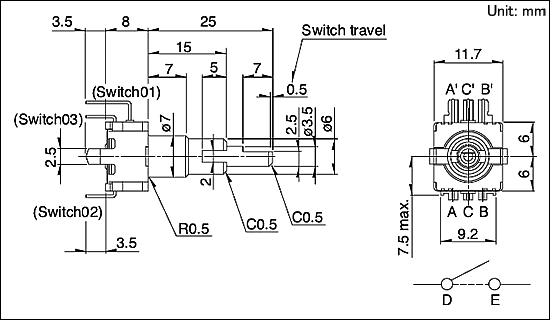

Rotary encoder with dual axis shaft and switch.
Specifications:
- Resolution: 15imp/revol.
- Output signal: two phase A and B
- Mechanical durability: 15000cycles
- Operating current max.: 10mA
- Shaft surface: D spring
- Shaft diameter: 6mm
- Shaft length: 10mm
- Operating voltage: 5V DC
- Number of all positions: 30
- Key stroke: 0.5mm
