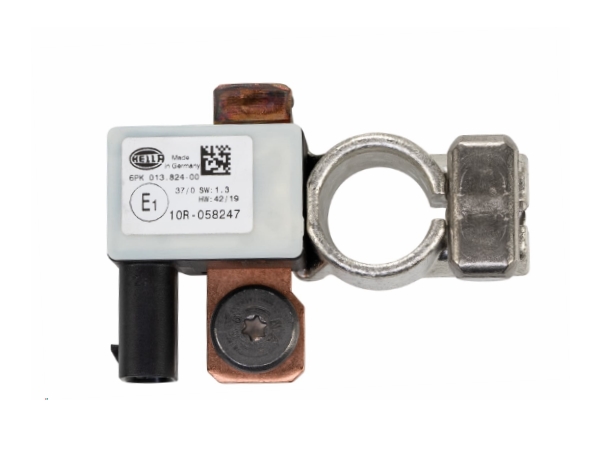

HELLA Intelligent batterisensor (IBS), 12V 500Ah
Varenr:
H31964
EAN:
5705412319645
Intelligent batterisensor (IBS) til 12V batteristyring (2018-2025).
Tekniske detaljer:
- Producent (varemærke): HELLA
- Spændingsmærke: 12V
- Driftsspænding: 6...18V
- Permanent belastningsstrøm: 175A
- Maks. strøm: 1500A
- Driftsstrøm: 10mA
- Maks. batterikapacitet: 500Ah
- Udgangssignal: LIN (2.0) eller højere
- Gevindbolt, jordforbindelse: M6
- IP-rating: IP 6K9K
- Operationel temperatur: -40...105°C
Intelligent battery sensor (IBS) for 12V battery management (2018-2025).
Specifications:
- Manufacturer: HELLA
- Voltage rating: 12V
- Operating voltage: 6...18V
- Permanent load current: 175A
- Max. current: 1500A
- Operating current: 10mA
- Max. battery capacity: 500Ah
- Output signal: LIN (2.0) or higher
- Threaded bolt, ground connection: M6
- IP rating: IP 6K9K
- Operating temperature: -40...105°C
