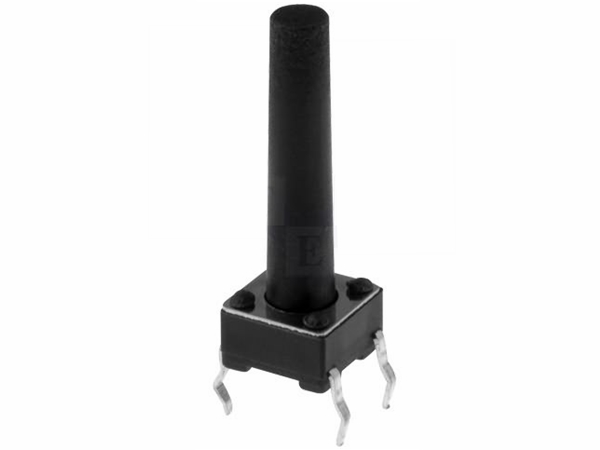

TACT mikrotrykkontakt - 6x6mm, H=19mm
Varenr:
H31327
EAN:
5705412313278
Mikro, letvægts Tact-trykkontakt. Snap-in-type: egnet til direkte printkortmontering.
Specifikationer:
- Type: Mikroswitch, 1-pos., SPST-NR
- Husstørrelse: 6x6x3,5mm
- Knaphøjde: 15,5mm
- Totalhøjde: 19mm (fra print)
- Klassificering: 12Vdc - 50mA
- Isolationsmodstand: > 100 Mohm - 250 Vdc
- Kontaktmodstand: < 100 mOhm
- Loddetemperatur: 255°C (maks. 5 sek.)
- Mekanisk levetid: 500.000 cyklusser
- Elektrisk levetid: 300.000 cyklusser
- Operationel temperatur: -25...70°C
- Skiftemoment: 1,6N
Micro-miniature, lightweight Tact switch. Snap-in type: suitable for direct PCB mounting
Specifications:
- Type: Microswitch, 1-pos., SPST-NO
- Case: 6 x 6 x 3,5mm
- Button height: 15,5mm
- Total height: 19mm (fra print)
- Rating: 12Vdc - 50mA
- Insululation resistance: > 100Mohm - 250Vdc
- Contact resistance: < 100mOhm
- Solder temperature: 255°C (maks. 5 sec.)
- Mechanical lifetime: 500000 cycles
- Electrical lifetime: 300000 cycles
- Operating temperature: -25...70°C
- Switching torque: 1,6N
