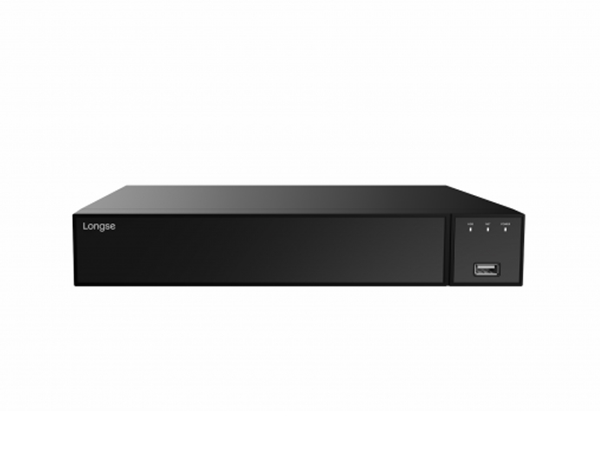

HD CCTV Hybridoptager - 4 kanal (TVI/CVI/AHD/Analog/IP) 8MP
Varenr:
H30289
EAN:
5705412302890
CCTV hybridoptager til overvågningsoptagelse. Du kan tilslutte alle TVI/CVI/AHD/analoge og IP-kameraer, og optageren registrerer automatisk den tilsluttede kameratype (vi anbefaler TVI-kameraer, se tilbehør). Understøtter ultrahøj optagelsesopløsning på op til 8MP. Du skal blot montere en standard 3,5" eller 2,5" SATA HDD (se tilbehør) og vælge dine optagelsespræferencer. Så har du en professionel og pålidelig CCTV-optagelsesløsning, der kan sende alarm-push-beskeder til din smartphone, når en (bevægelsesdetekterende) alarm udløses.
Denne hybride videooptager har alle de funktioner, der er nødvendige for professionel overvågning og hjemmeovervågning. Den vigtigste nye funktion er AI Human Detection, som gør denne enhed til kernen i et ægte alarmsystem, hvor du får en push-notifikation på din smartphone, når systemet registrerer menneskelig bevægelse. På denne måde undgår du falske alarmer fra dyr og insekter.
Egenskaber:
- Understøtter AHD / CVI / TVI 2.0 / TVI 3.0 / IP og analog kameraindgang
- Understøtter maks. 4CH HD- eller 16CH IP-kameraindgang
- Optagelse med op til 8MP HD- og 5MP IP-opløsning
- Understøtter HD- og VGA-videoudgang
- Understøtter 1 SATA HDD med en kapacitet på op til 8 TB
Tekniske detaljer:
- System:
- Hovedprocessor: MC6650
- Operativsystem: Indlejret LINUX
- Video:
- Signaltype: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Netværk
- Indgangssignalkapacitet:
- Standard: 4 x (AHD/TVI/CVI: 8MP; AHD/TVI: 5MP; TVI: 5MP (16:9); CVI: 5MP ved 25fps; AHD/TVI/CVI: 4MP; AHD/TVI: 3MP; AHD/TVI/CVI: 1080P/720P)
- Analog+Netværk: 960H+4 x netværk (maks. 8MP); 2 x analog (8MP)+7 x netværk (maks. 8MP)
- Netværk: 16 * netværk (maks. 8MP) (Samlet indgående båndbredde <=80M)
- Indgangsstik: 4CH BNC
- Udgang: 1 HDMI, 1 VGA
- Lyd:
- Indgang: 1 kanal, RCA, understøtter AOC
- Tovejs lyd: Nej
- Udgang: 1 kanal, RCA
- Alarm:
- Sensorindgang: 4 kanaler
- Udgang: 1 kanal
- Bevægelsesdetektion: 4 kanaler (maks. 16 kanaler i ren netværkstilstand)
- Udløserhændelser: Optagelse, e-mail, skærmtips, buzzer, push-notifikationer (bevægelsesdetektion)
- E-mail-alarm: Send billede til den angivne e-mail
- AI-funktion:
- Menneskelig detektion: Ja
- PTZ:
- Grænseflade: RS485
- Protokol: Pelco-D, Pelco-P
- Baudhastighed: 110~921600
- Adresse: 0~255
- Display:
- VGA-opløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- HDMI-udgangsopløsning: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
- Skærmopdeling: 1/4/8/8/16 kanaler
- Privatlivsmaskering: 3 rektangulære zoner (hvert kamera)
- OSD: Kameratitel, Tid, Videotab, Alarm, Bevægelsesdetektion, Optagelse
- Optagelse:
- Videokomprimering: H.265/H.265+/H.264/H.264+
- Lydkomprimering: G.711U/G.711A
- Opløsning: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H
- Videokvalitet: Laveste/Lav/Almindelig/God/Bedre/Bedst
- Optagehastighed:
- Analog: 8MP (4*8 fps), 5MP (4*12 fps), 4MP (4*15 fps), 3MP (4*18 fps), 1080P (4*25 fps), 720P (4*25 fps), 960H (4*25 fps)
- Ren IP (H.265): 8MP@9x25fps, 5MP@12x25fps, 4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
- Optagetilstand: Manuel, Timer, Bevægelsesdetektion, Alarm, Intelligent (Menneskedetektion)
- Afspilning og sikkerhedskopiering:
- Afkodningskapacitet: 4 x 1080P@30fps
- Synkroniser afspilning:
- Ren analog: 3 kanaler 8M@8fps, 4 kanaler 5M@12fps, 4 kanaler 4M@15fps, 4 kanaler 3M@18fps, 4 kanaler 1080p@30fps, 1 kanaler 4K@30fps
- Mix-tilstand: 2 kanaler 8M@8fps, 2 kanaler 5M@12fps, 2 kanaler 4M@15fps, 2 kanaler 3M@18fps, 2 kanaler 1080p@30fps, 1 kanaler 4K@30fps, 1 kanaler 5M@30fps, 2 kanaler 4M@30fps, 2 kanaler 3M@30fps, 4 kanaler 1080P@30fps, 4 kanaler 960P@30fps, 4 kanaler 720P@30fps
- Ren IPC: 1 kanal 4K@30fps, 1 kanal 5M@30fps, 2 kanal 4M@30fps, 2 kanal 3M@30fps, 4 kanal 1080P@30fps, 4 kanal 960P@30fps, 4 kanal 720P@30fps
- Fjernafspilning: 4 kanaler / 1 kanal
- Søgetilstand: ALLE, Kanal, Manuel, Tid, Dato, Bevægelsesdetektion, Alarm, Tag
- Afspilningsfunktioner: Afspil, Pause, Stop, Hurtig afspilning, Langsom afspilning, Tilbagespoling, Enkelt billede frem/tilbage, Digital zoom, Fuld skærm
- Smartphone-afspilning: 4 kanaler
- Backup-tilstand: USB-enhed (med FAT32-format) / Netværk / FTP
- Netværk:
- Grænseflade: 1 x RJ45 10M/100M adaptivt Ethernet-grænseflade
- Netværksfunktioner: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN
- Webbrowser: Edge, IE8-11, Google Chrome, Firefox, Safari
- CMS-software: Understøtter Windows 10/11 og Mac OS
- Ekstra strøm: CIF/D1 (1~25fps)
- Smartphone: iPhone, iPad, Android, Android-tablet
- Harddiskdriver:
- Grænsefladetype: SATA
- Kapacitet: 1 x SATA-harddisk (2,5"/3,5" SATA, op til 8 TB, se tilbehør)
- Generel:
- Sprog: Engelsk, forenklet kinesisk, traditionelt kinesisk, polsk, tjekkisk, russisk, thai, hebraisk, arabisk, bulgarsk, japansk, tysk, fransk, portugisisk, tyrkisk, spansk, italiensk, ungarsk, rumænsk, koreansk, hollandsk, græsk, vietnamesisk
- UTC-kontrol: Ja
- USB-grænseflade: 2 x USB 2.0
- Strømforsyning: 12Vdc / 2A (adapter medfølger)
- Operationel temperatur: -10...55°C
- Driftsfugtighed; 10...90%
- Dimmensioner (B×D×H): 260x230x43mm
- Vægt: 1,2kg (uden harddisk)
CCTV hybrid recorder for surveillance recording. You can connect any TVI / CVI / AHD / Analog and IP camera, and the recorder automatically detects the type of cameras connected (we recommend TVI cameras, see accessories). Supports Ultra high recording resolution up to 8MP. Just mount a standard 3.5" or 2,5" SATA HDD (see accessories) and select your recording preferences. Then you will have a professional and reliable CCTV recording solution which can send alarm push-messages to your smartphone when a (motion detection) alarm is triggered.
This hybrid video recorder has all the features needed for professional surveillance and home monitoring. The most important new feature is AI Human Detection, which makes this device the core of a true alarm system, where you get a push notification on your smartphone when the system detects human movement. This way you avoid false alarms from animals and insects.
Features:
- Support AHD / CVI / TVI 2.0 / TVI 3.0 / IP and Analog Camera Input
- Support Max. 4CH HD or 16CH IP Camera Input
- Up to HD 8MP and IP 5MP Resolution Recording
- Support HD and VGA Video Output
- Support 1 SATA HDD up to 8TB Capacity
Specifications:
- System:
- Main Processor: MC6650
- Operating System: Embedded LINUX
- Video:
- Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
- Input signal capacity:
- Default: 4 x (AHD/TVI/CVI: 8MP; AHD/TVI: 5MP; TVI:5MP(16:9); CVI:5MP@25fps;AHD/TVI/CVI:4MP; AHD/TVI:3MP; AHD/TVI/CVI:1080P/720P
- Analog+Network: 960H+4 x network(Max 8MP); 2 x Analog(8MP)+7 x network(Max 8MP)
- Network: 16 * network (max. 8MP) (Total incoming bandwidth <=80M)
- Input connectors: 4CH BNC
- Output: 1 HDMI, 1 VGA
- Audio:
- Input: 1 Channel, RCA, Support AOC
- Two-way Audio: No
- Output: 1 Channel, RCA
- Alarm:
- Sensor Input: 4 CH
- Output: 1 CH
- Motion Detection: 4 channel (max 16 channel in pure network mode)
- Trigger Events: Recording, Email, Screen tips, Buzzer, Push notifications (motion detection)
- Email Alarm: Send Image to The Designated E-mail
- AI function:
- Human detection: Yes
- PTZ:
- Interface: RS485
- Protocol: Pelco-D, Pelco-P
- Baud Rate: 110~921600
- Address: 0~255
- Display:
- VGA resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- HDMI output resolution: 1920x1080P/60Hz, 1280x1024/60Hz, 1280x720/60Hz,1024x768/60Hz
- Display split: 1/4/8/8/16 channel
- Privacy masking: 3 rectangular zones (each camera)
- OSD: Camera title, Time, Video loss, Alarm, Motion detection, Recording
- Recording:
- Video Compression: H.265/H.265+/H.264/H.264+
- Audio Compression: G.711U/G.711A
- Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H
- Video Quality: Lowest/Low/Ordinary/Good/Better/Best
- Record Rate:
- Analog: 8MP(4*8fps), 5MP(4*12fps), 4MP(4*15fps),3MP(4*18fps),1080P(4*25fps),720P(4*25fps), 960H(4*25fps)
- Pure IP (H.265): 8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
- Record Mode: Manual, Timer, Motion Detection, Alarm, Intelligent (Human Detection)
- Playback & Backup:
- Decode Capability: 4 x 1080P@30fps
- Sync Playback:
- Pure Analog: 3CH 8M@8fps, 4CH 5M@12fps,4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps, 1CH 4K@30fps
- Mix Mode: 2CH 8M@8fps, 2CH 5M@12fps,2CH 4M@15fps, 2CH 3M@18fps, 2CH 1080p@30fps, 1CH 4K@30fps,1CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
- Pure IPC: 1CH 4K@30fps, 1CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
- Remote Playback: 4 Channel / 1 Channel
- Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Tag
- Playback Functions: Play, Pause, Stop, Fast play, Slow play, Rewind, Single frame forward/back, Digital Zoom, Full screen
- Smart Phone Playback: 4 Channel
- Backup Mode: USB Device (with fomat FAT 32 ) / Network / FTP
- Network:
- Interface: 1 x RJ45 10M/100M Adaptive Ethernet Interface
- Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP,DHCP, FTP, DDNS, RTP, RTSP, RTCP
- DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE,HDPROVN
- Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
- CMS Software: Support Windows 10/11 and Mac OS
- Extra Stream: CIF/D1(1~25fps)
- Smart Phone: iPhone, iPad, Android, Android pad
- Hard Disk Driver:
- Interface Type: SATA
- Capacity: 1 x SATA Hard Disk (2.5"/3.5" SATA, Up to 8TB, see accessories)
- General:
- Language: English, Simplified Chinese,Traditional Chinese, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek, Vietnamese
- UTC Control: Yes
- USB Interface: 2 x USB 2.0
- Power supply: 12VDC / 2A (adapter included)
- Operating temperature: -10...55°C
- Operating humidity; 10...90%
- Dimensions (W×D×H): 260 x 230 x 43mm
- Weight: 1,2 kg (without HDD)
