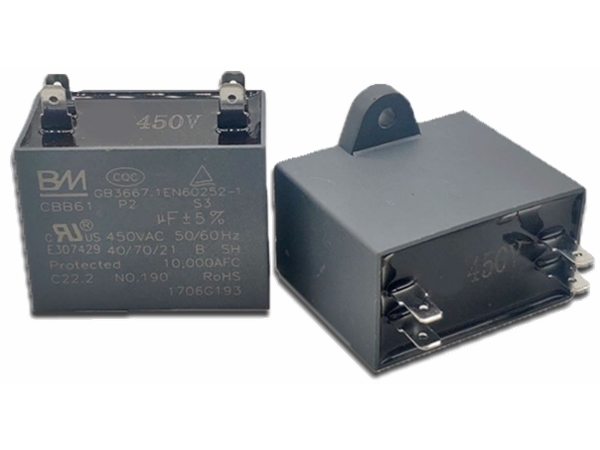

CBB61 motor kondensator - 1,2uF 450V, ±5%, spadestik, flange
Varenr:
H25078
EAN:
5706470040106
2uF motor kondensator i rektangulært hus med spadestik.
CBB61 bruges som start-kondensator i forbindelse med 50/60Hz enfasede motorer. Dette kondensator har konpakt størrelse, lang levetid, høje proportionelle egenskaber og selvhelbredende ydeevne. Den er meget udbredt i ventilatorer, emhætter.
Tekniske detaljer:
- Anvendelse: Motor, start
- Kapacitet: 1,2µF
- Spænding: 450VAC
- Husstørrelse (B x H x D): 38 x 24 x 13,7mm
- Tolerance: ±5%
- Elektrisk montage: Spadestik (dobbelt par)
- Mekanisk motage: Flange for skruemont.
- Kondensator serie: CBB61
2uF motor capacitor in rectangular housing with flat terminals and mounting bracket.
CBB61 is used for the operation of the starter box of 50/60Hz single-phase motors. This product has small size, long life, high proportional characteristics, and self-healing performance. It is widely used in fans, ceiling fans, floor fans, and range hoods.
Technical details:
- Application: Engine, start
- Capacitance: 1.2µF
- Voltage: 450VAC
- Housing size (W x H x D): 38 x 24 x 13,7mm
- Tolerance: ±5%
- Electrical assembly: Flat terminal
- Mechanical mount: Screw
- Capacitor series: CBB61
