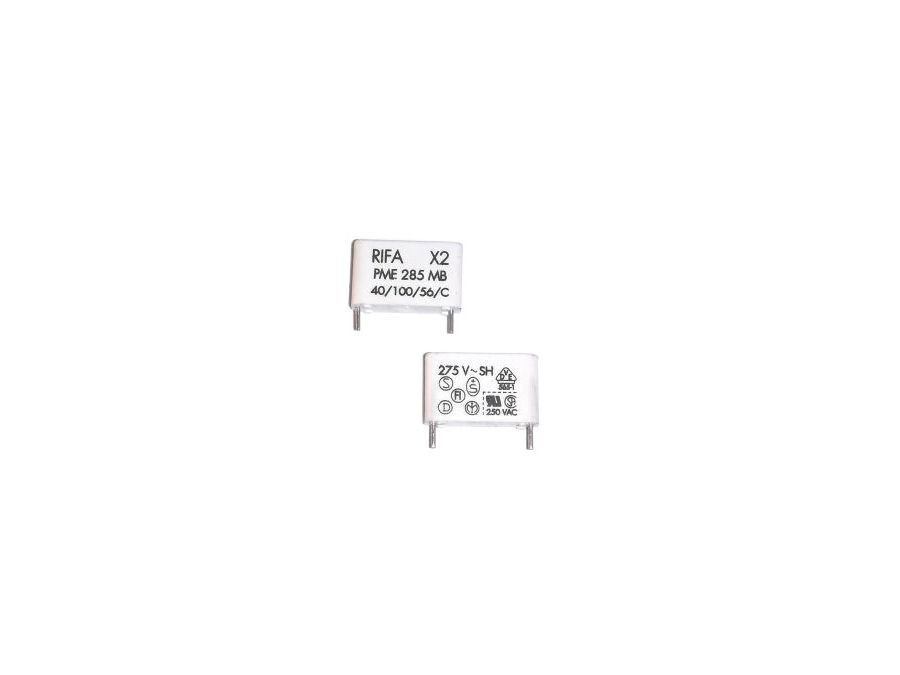

X2 kondensator - 22nF (0,022uF) 275VAC (15mm)
Varenr:
H22472
EAN:
5705412224727
Tekniske detaljer:
- Type kondensator 1: Polypropylen, X2
- Kondensatoranvendelse: Mellem forsyningspolerne
- Kapacitans: 22nF
- Benafstand: 15mm
- Tolerance: ±20%
- Husstørrelse: 18x5x11mm
- Klimaklasse: 40/100/56 (IEC 60068-1)
- Operationel temperatur: -40...100°C
- Montering: Printhul
- Kapacitans - µF: 0,022 µF
- Benlængde: 4mm
- Maks. driftsspænding: 275Vac, 560Vdc
Også kendt som: 46KI22200001M, R46KI22200001M
Specifications:
- Type of capacitor: Polypropylene
- Capacitor application: Between the supply poles
- Kind of capacitor: X2
- Capacitance: 22nF
- Terminal pitch: 15mm
- Tolerance: ±20%
- Body dimensions: 18x5x11mm
- Climate class: 40/100/56 (IEC 60068-1)
- Operating temperature: -40...100°C
- Mounting: THT
- Capacitance - µF: 0.022µF
- Lead length: 4mm
- Alias: 46KI22200001M
- Max. operating voltage: 275VAC, 560VDC
