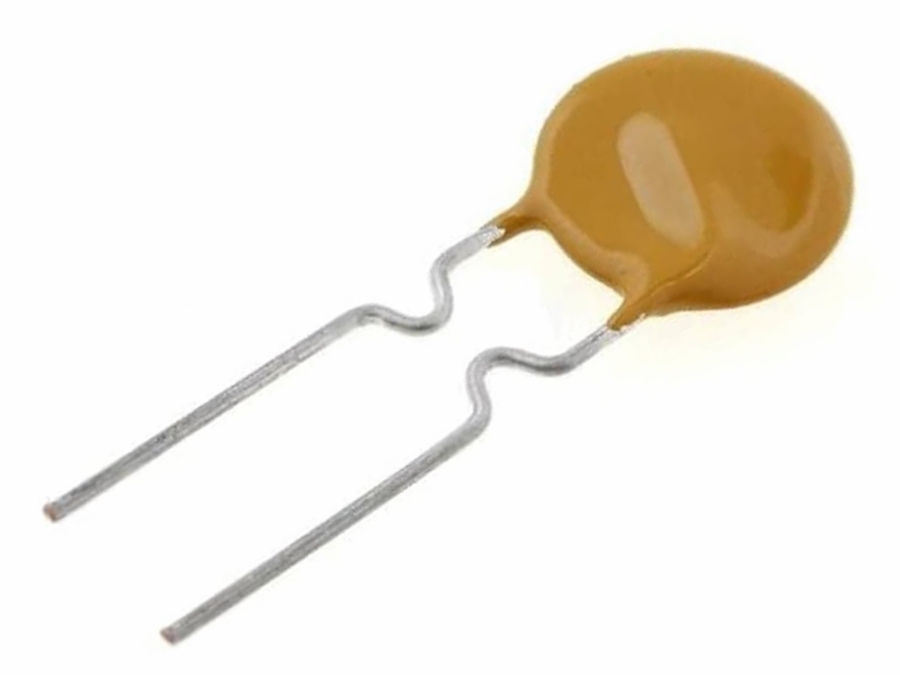

PTC genskabende sikring - 0,3-0,6A / 60VDC
Varenr:
H15569
EAN:
5410329214159
PTC-modstande nulstilles automatisk og beskytter dit kredsløb permanent.
Tekniske detaljer:
- Producent (varemærke): ECE
- Sikringstype: PTC-polymer
- Holdestrøm (Ih): 300mA
- Brydestrøm (It): 600mA
- Maks. overspændingsstrøm: 40A
- Maks. spænding: 60Vdc
- Effekt: 490mW
- Min. modstand: 880mOhm
- Maks. modstand: 2,1 Ohm
- Benafstand: 5,1mm

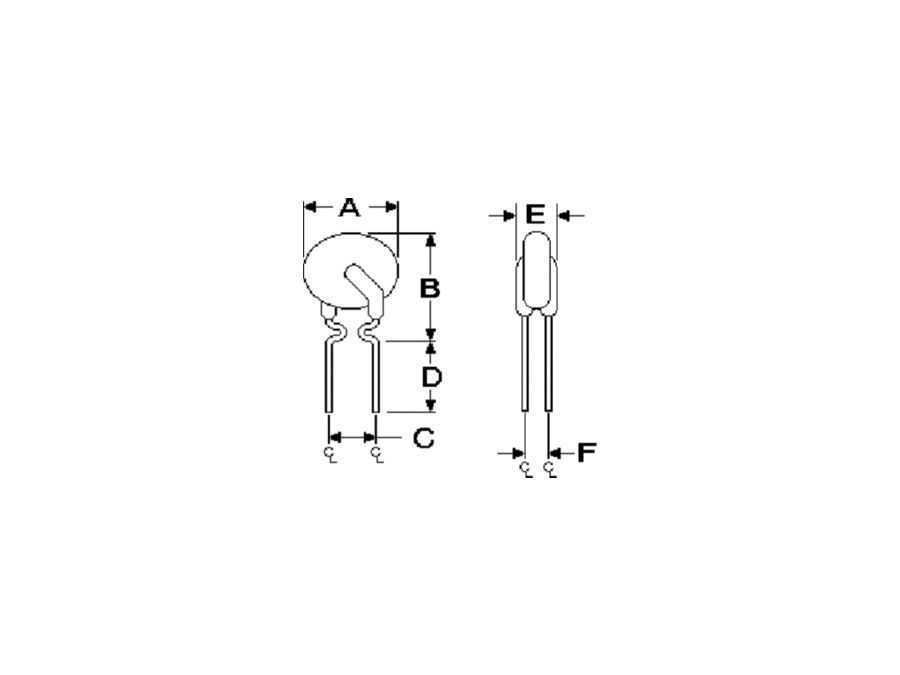

- A-dimension: 7,4mm
- B-dimension: 13mm
- C-dimension: 5,1mm
- D-dimension: 7,6mm
- E-dimension: 3,1mm
- F-dimension: 1,1mm
- Operationel temperatur: -40...85°C
- Leder-dimensioner: Ø0,51x7,6mm
Specifications:
- Manufacturer: ECE
- Type of fuse: PTC polymer
- Current rating (hold current): 300mA
- Max surge current: 40A
- Switched current (trip current): 600mA
- Max. voltage: 60V DC
- Power: 490mW
- Min. resistance: 880mOhm
- Max resistance: 2.1Ohm
- Terminal pitch: 5.1mm
- A dimension: 7.4mm
- B dimension: 13mm
- C dimension: 5.1mm
- D dimension: 7.6mm
- E dimension: 3.1mm
- F dimension: 1.1mm
- Operating temperature: -40...85°C
- Leads dimensions: Ø0.51x7.6mm
