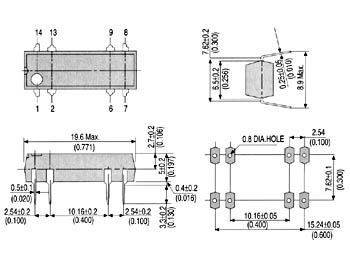

REED relæ - 24VDC / 0,5A maks. 10W, 1 x slutte (DIP14-8)
Varenr:
H15241
EAN:
5410329281779
Tekniske detaljer:
- Producent (varemærke): COMUS
- Relæ type: Reed
- Skiftemetode: SPST-NO
- Nominel spolespænding: 24Vdc
- Maks. kontaktstrøm: 500mA
- Maz. skiftespænding: 150Vdc
- Skiftekapacitet: 10W
- Spolemodstand: 2,15 kOhm
- Montering: Printhul
- Hus: DIP14
- Kontaktmodstand: 150 mOhm
- Spændingsspænding min .: 18Vdc
- Spolespænding maks.: 32Vdc
- Operationel temperatur: -20...85°C
- Husstørrelse: 19,5x6,9x6,9mm
- Relæserie: 3570
- Benafstand: 2,54mm
Specifications:
- Manufacturer: COMUS
- Type of relay: Reed
- Switching method: SPST-NO
- Rated coil voltage: 24V DC
- Contact current max.: 500mA
- Maz. switched voltage: 150V DC
- Switching capacity: 10W
- Coil resistance: 2.15 kOhm
- Mounting: THT
- Case: DIP14
- Contact resistance: 150 mOhm
- Coil voltage min.: 18V DC
- Coil voltage max.: 32V DC
- Operating temperature: -20...85°C
- Body dimensions: 19.5x6.9x6.9mm
- Relay series: 3570
- Terminal pitch: 2.54mm
